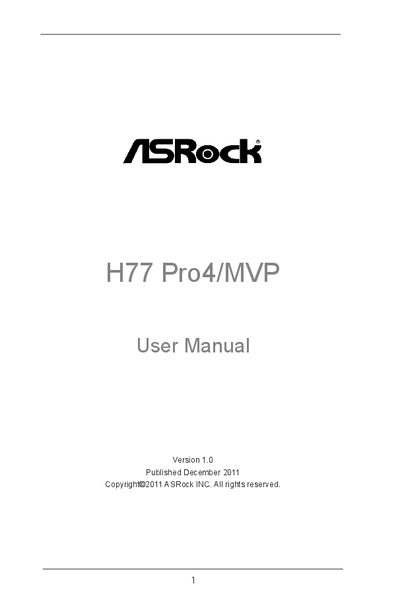

This document is the user manual for ASRock H77 Pro4/MVP motherboard, which provides specifications and information about the motherboard, as well as instructions for use.
This manual covers everything needed to install and configure the ASRock H77 Pro4/MVP motherboard, including package contents, CPU and memory installation, expansion slot usage, and detailed UEFI BIOS settings. It also lists the supported operating systems, driver installation procedures, and troubleshooting tips.
Technical specifications such as form factor, supported CPUs, chipset, memory capacity, storage interfaces, and I/O ports are presented in dedicated sections, helping users verify compatibility and optimize system performance.
| Form Factor | ATX (12.0 in x 7.9 in) |
|---|---|
| CPU Socket | LGA1155 |
| Chipset | Intel H77 |
| Memory Slots | 4 DDR3 DIMM slots |
| Maximum Memory Capacity | 32 GB |
| LAN Controller | Realtek RTL8111E Gigabit Ethernet |
The motherboard supports up to 32 GB of DDR3 memory.
It uses the LGA1155 socket for 2nd and 3rd‑generation Intel Core i7/i5/i3 processors.
The board includes a Realtek RTL8111E Gigabit Ethernet controller.
