ASRock H77 Pro4/MVP Motherboard

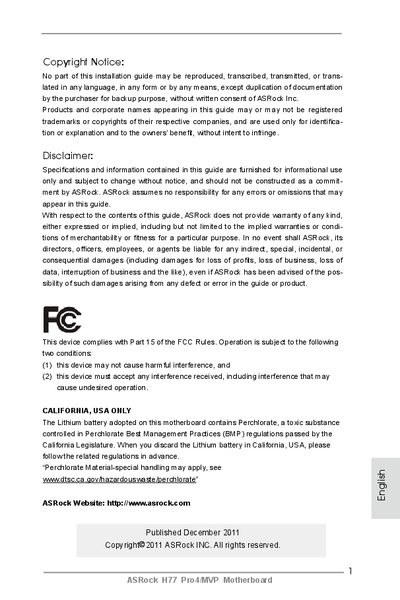

This guide introduces the ASRock H77 Pro4/MVP motherboard, lists the package contents, and explains safety and regulatory notices. It also outlines the quick‑installation steps and points users to the full user manual on the support CD for deeper configuration.
The document details the board’s technical specifications, including the ATX form factor, CPU socket, memory slots, chipset, expansion slots, I/O ports, SATA and USB connectors, BIOS features, and unique ASRock utilities. It also includes troubleshooting steps for Windows hot‑fixes and driver installation.
| Form Factor | ATX (12.0‑in x 7.9‑in) |
|---|---|
| CPU Socket | 1155‑Pin LGA1155 |
| Memory Slots | 4 DDR3 DIMM slots |
| Maximum Memory Capacity | 32 GB |
| Chipset | Intel H77 |
| SATA3 Ports (Intel) | 2 × 6 Gb/s |
| SATA3 Ports (ASMedia) | 2 × 6 Gb/s |
| Rear USB 3.0 Ports | 2 ports |
| LAN Controller | Realtek RTL8111E |
| Power Phase Design | 4+2 phases |
It uses a 1155‑Pin LGA1155 socket for Intel 2nd‑ and 3rd‑generation Core processors.
The motherboard supports up to 32 GB of DDR3 memory.
