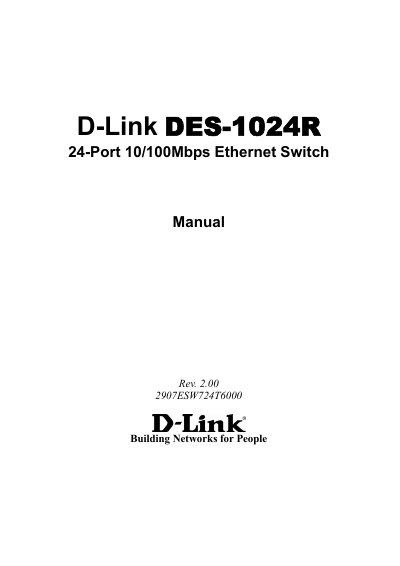

This manual discusses how to install your DES-1024R 24-port 10/100Mbps Fast Ethernet Switch. This device integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities into one highly flexible solution.
This manual describes the DES-1024R 24‑port Fast Ethernet switch, its features, and how to install and configure it. It includes sections on unpacking, desktop and rack mounting, front and rear panel identification, and detailed technical specifications.
Installation instructions cover attaching rubber feet for desktop placement, mounting brackets for rack installation, and power and ventilation requirements. The technical specifications list performance, environmental, and physical data for the device.
| Data Transfer Rate (Ethernet) | 10Mbps half‑duplex, 20Mbps full‑duplex |
|---|---|
| Data Transfer Rate (Fast Ethernet) | 100Mbps half‑duplex, 200Mbps full‑duplex |
| Number of Ports | 24 x 10/100Mbps |
| Power Consumption | 9.5 W |
| Dimensions (W × D × H) | 17.32 in. × 5.51 in. × 1.73 in. |
| Operating Temperature | 0 °C ~ 40 °C |
| Storage Temperature | -10 °C ~ 70 °C |
| RAM Buffer | 160 KB |
| Address Table Size | 8 K entries |
The DES-1024R provides 24 ports that support 10/100Mbps Ethernet connections.
It accepts an AC input of 100 to 240 VAC, 50 or 60 Hz with an internal universal power supply.
Attach the four rubber feet to the bottom corners, ensure ventilation space, and avoid covering the ventilation holes.
