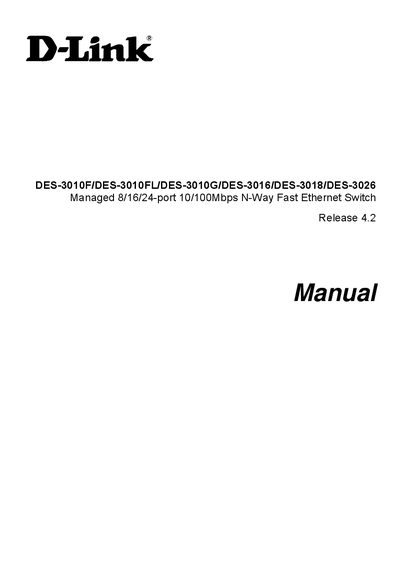

This is a command line interface reference manual for D-Link DES-3000 series switch
This manual provides a complete reference for the command line interface (CLI) of D-Link DES-3010F, DES-3010FL, DES-3010G, DES-3016, DES-3018 and DES-3026 managed Ethernet switches. It describes how to access the console via serial port or Telnet, set IP addresses, and use the full set of CLI commands for switch configuration, monitoring, and management.
The document also includes technical specifications, environmental ratings, and standards compliance for each model, as well as detailed tables of commands for basic switch functions, VLANs, link aggregation, QoS, security, and network management protocols such as SNMP, DHCP relay, and IGMP snooping.
| Power Consumption | DES-3010FL – 14.8W; DES-3010F – 15W; DES-3010G – 14.8W; DES-3016 – 11W; DES-3018 – 15.2W; DES-3026 – 17W |
|---|---|
| Operating Temperature | 0 to 40 °C |
| Dimensions (8‑port models) | 280 mm × 180 mm × 44 mm (1U) |
| Dimensions (16‑/24‑port models) | 441 mm × 207 mm × 44 mm (1U) |
| Number of Ports (DES-3026) | 24 × 10/100 Mbps NWay ports + 2 optional module slots |
| Default Serial Port Settings | 9600 baud, no parity, 8 data bits, 1 stop bit |
| Default IP Address | 10.90.90.90 |
The default IP address is 10.90.90.90.
It has 24 ten‑/hundred‑megabit NWay ports plus two optional module slots.
9600 baud, no parity, 8 data bits, and 1 stop bit.
