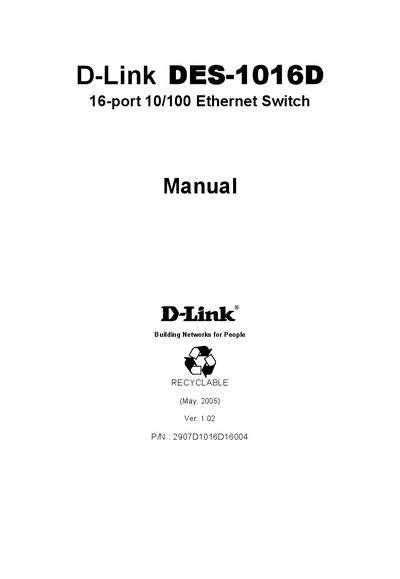

This manual describes the features and characteristics of the DES-1016D 16-port 10/100Mbps Auto-negotiation Fast Ethernet Switch, and guides users through the basic installation and configuration of the switch.
This guide provides step‑by‑step instructions for unpacking, desktop installation, and rack mounting of the D‑Link DES‑1016D 16‑port 10/100 Ethernet Switch. It also describes the front‑panel, rear‑panel and LED indicators, and includes a full list of technical specifications.
The manual explains the Fast Ethernet and switching technologies used in the device, and offers troubleshooting tips such as broadcast storm protection and flow‑control settings. It is intended for network administrators and end‑users who need to set up and maintain the switch in office or small‑business environments.
| Ports | 16‑port 10/100BASE Ethernet |
|---|---|
| Auto‑negotiation | Supports auto‑negotiation of speed and duplex for each port |
| Auto‑MDI/MDI‑X | Supported on each port |
| Switching Method | Store‑and‑Forward |
| MAC Address Table | 8 K absolute MAC addresses |
| Buffer RAM | 160 KB |
| LED Indicators | Front‑panel diagnostic LEDs |
| Broadcast Storm Protection | Enabled |
| Flow Control | IEEE 802.3x full‑duplex, back‑pressure half‑duplex |
The surface must support at least 5 kg.
The power outlet should be within 1.42 meters (6 feet) of the device.
