The DSN-S316 IP-SAN storage is mainly used for hard disk backup, content delivery, mirroring, video surveillance, data archiving, etc. It features over 80,000 I/O operations per second, battery-protected data cache of up to 4GB, and support for RAID.
The DSN‑S316 is a network‑attached storage solution designed for the security market, offering up to 32 TB capacity, 16 hot‑swap SATA drives and high‑performance IP‑SAN connectivity. It integrates a SoC that handles iSCSI, TCP/IP and storage virtualization on a single ASIC, providing over 80,000 IOPS and 445 MB/s throughput.

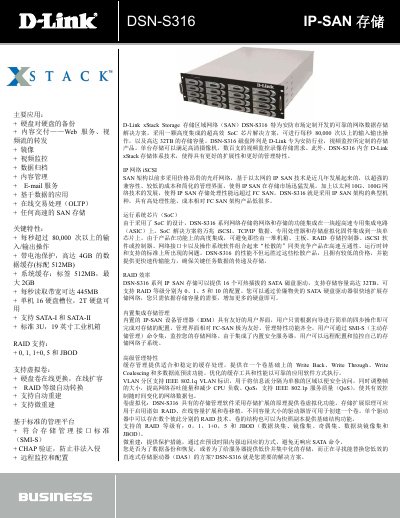

The manual describes the device’s key features such as RAID 0/1/5/10/JBOD support, online volume expansion, automatic rebuild, VLAN and QoS configuration, as well as management via a web interface and SMI‑S commands. Technical specifications, power requirements, environmental limits and installation dimensions are also provided. This manual is written in Chinese.
| Host interfaces | 4×1000base‑T |
|---|---|
| Hard drive slots | 16 SATA |
| System cache (max) | 512 M / 2 GB |
| Data cache (max) | 512 M / 4 GB |
| IOPS | 80,000 |
| Maximum read/write throughput | 445 MB/s |
| Supported RAID levels | 0, 1, 5, 10, JBOD |
| Maximum virtual volumes | 1024 |
| Maximum host connections | 1024 |
| Power supply | Redundant 500 W ×2 |
| Operating temperature | 32‑95 °F (0‑35 °C) |
| Dimensions (HxWxL) | 13.2 cm × 44 cm × 54.8 cm |
| Weight | 16.8 kg |
It supports RAID 0, RAID 1, RAID 5, RAID 10 and JBOD.
The unit provides 16 hot‑swap SATA drive slots.
The storage can deliver up to 80,000 IOPS.
Yes, it includes two redundant 500 W power supplies.
