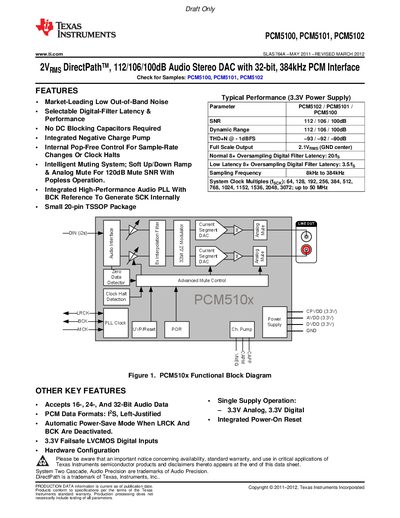

PCM5100, PCM5101, PCM5102 are TI company's audio stereo DAC with maximum output voltage of 2.1VRMS, supporting 32-bit, 384kHz PCM interface. This chip has market-leading low out-of-band noise, selectable digital filter latency and no DC blocking capacitors required.
The PCM510x family provides a monolithic CMOS stereo digital‑to‑analog converter with selectable digital‑filter latency, integrated PLL and pop‑free operation. It delivers 2.1 V rms ground‑centered outputs, eliminating the need for external DC‑blocking capacitors, and supports 16‑ to 32‑bit audio data at sample rates from 8 kHz to 384 kHz.
The devices operate from a single 3.3 V supply for analog, digital and charge‑pump rails, feature an intelligent mute system, and can drive loads as low as 1 kΩ. Detailed electrical, mechanical and terminal specifications are provided for designers.
| Dynamic Range | 112 dB (PCM5102), 106 dB (PCM5101), 100 dB (PCM5100) |
|---|---|
| Signal‑to‑Noise Ratio | 112 dB (PCM5102), 106 dB (PCM5101), 100 dB (PCM5100) |
| THD+N @ -1 dBFS | -93 dB (PCM5102), -92 dB (PCM5101), -90 dB (PCM5100) |
| Full‑Scale Output Voltage | 2.1 V rms (ground centered) |
| Supply Voltage Range | 0.3 V to 3.9 V for AVDD, CPVDD, DVDD |
| Supported Sampling Frequency | 8 kHz to 384 kHz |
| System Clock Multiples | 64, 128, 192, 256, 384, 512, 768, 1024, 1152, 1536, 2048, 3072 (up to 50 MHz) |
| Load Impedance | 1 kΩ |
The DACs provide a 2.1 V rms ground‑centered analog output.
All three supply rails (AVDD, CPVDD, DVDD) operate from a 3.3 V nominal supply, with a permissible range of 0.3 V to 3.9 V.
The devices support sampling rates up to 384 kHz.
The PCM5102 achieves a dynamic range of 112 dB.
