The ADS1294/6/8/4R/6R/8R family is a low power, 8-channel, 24-bit analog front end for biopotential measurement.
The ADS129x family comprises low‑power, multichannel, simultaneously‑sampling 24‑bit delta‑sigma ADCs with integrated programmable gain amplifiers, designed for ECG, EMG, EEG and other biopotential applications. The devices support data rates from 250 SPS up to 32 kSPS, provide a SPI‑compatible interface, four GPIO pins, and optional right‑leg drive, Wilson central terminal, and respiration circuitry.

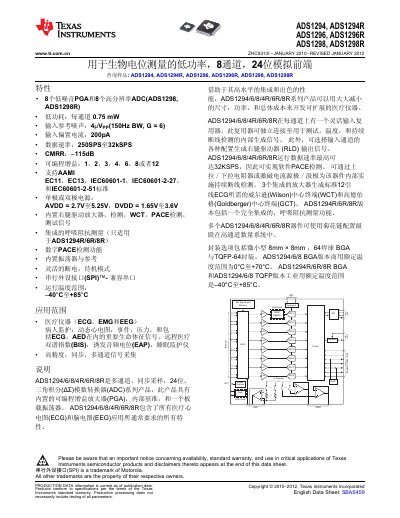

Key specifications include 4, 6 or 8 differential input channels, supply voltage AVDD 2.7 V–5.25 V, power consumption as low as 4.1 mW in low‑power mode, input‑referred noise as low as 5 µVpp at gain = 6, and operating temperature ranges of 0 °C to +70 °C (commercial) or –40 °C to +85 °C (industrial). This manual is written in Chinese.
| Resolution | 24‑bit |
|---|---|
| Supply voltage (AVDD) | 2.7 V to 5.25 V |
| Input‑referred noise (gain = 6, 500 SPS) | 5 µVpp |
The device provides four general‑purpose I/O pins.
AVDD can be supplied between 2.7 V and 5.25 V.
