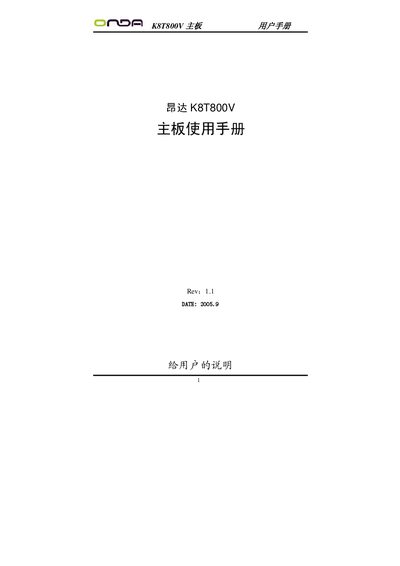

This document is the user manual for the Andar K8T800V motherboard. The manual includes packaging instructions, overview, motherboard layout, installation and setup, BIOS settings, etc. The manual provides detailed operation guides and configuration information.
This manual covers the packaging contents, hardware layout, and installation procedures for the ONDA K8T800V ATX motherboard. It includes detailed BIOS settings, power management options, and guidance for connecting peripherals such as USB, audio, and network interfaces.
The document also lists the technical specifications of the board, including supported CPUs, memory types, expansion slots, and integrated features like Serial ATA and AC'97 audio. Safety notices and warranty information are provided at the beginning of the guide. This manual is written in Chinese.
| Chipset | VIA K8T800+YT8237R |
|---|---|
| CPU Support | AMD Athlon 64 / Sempron Socket 754 |
| HyperTransport Bus | 800 MHz |
| Memory Type | DDR400/333/266/200 SDRAM |
| Maximum Memory Capacity | 2 GB |
| AGP Support | AGP 4X/8X |
| Serial ATA Interface | 150 MB/s |
| USB Ports | 8 × USB2.0 |
| PCI Slots | 4 × PCI 2.2 compatible |
| Form Factor | ATX |
It supports AMD Athlon 64 and Sempron processors for Socket 754.
The board provides eight USB ports that support USB 2.0 devices.
The motherboard can accommodate up to 2 GB of DDR SDRAM.
It uses the standard ATX form factor.
