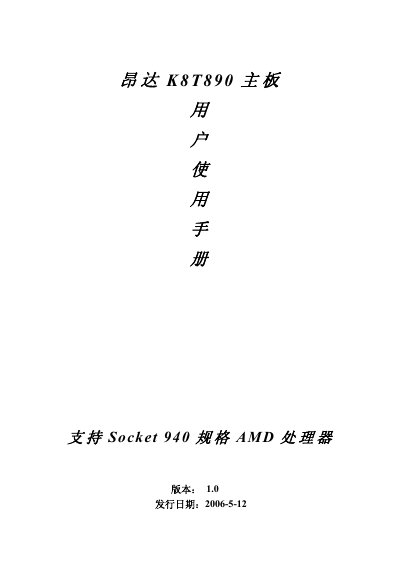

ONDA K8T890T Motherboard User Manual

This user manual is a user guide for the Angda K8T890 motherboard, providing detailed information on the support for Socket 940 AMD processors, motherboard installation and setup, BIOS settings, etc.

Brand: ONDA
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 43
File format: PDF
File size: 1.7 MB
Published: 13 March, 2012
Updated: 28 September, 2023
MD5 checksum: 3EE5C3B891DBC47D80B73D87940DBB25
PDF: ONDA K8T890T Motherboard User Manual PDF

About this manual

This manual covers the ONDA K8T890T ATX motherboard, detailing its packaging, hardware overview, and connector layout. It guides users through CPU, memory, and storage installation, as well as expansion card placement.

Further sections describe BIOS configuration, power‑management options, driver installation, and audio system setup, with troubleshooting tips and contact information for support. This manual is written in Chinese.

What's inside

Packaging Information
System Board Overview
Motherboard Diagram and I/O Interfaces
Installation and Setup
BIOS Settings
Driver Installation
Audio System Application

Specifications

Chipset	VIA K8T890 + VT8237R
CPU Socket	AM2 (Socket 940) supporting AMD processors
Memory Slots	4 DDR2 DIMM slots
Memory Speed Support	DDR2 800/667/533/400 MHz
USB Ports	8 USB 2.0 ports (up to 480 Mbit/s)
Audio	6‑channel AC97 v2.2 codec
LAN	Optional 10/100 Mbps Ethernet

Frequently asked questions

What CPU socket does the ONDA K8T890T motherboard use?

It uses an AM2 (Socket 940) socket that supports AMD processors.

How many DDR2 memory slots are available on the board?

The board provides four 240‑pin DDR2 DIMM slots.

Does the motherboard include built‑in audio, and what standard does it follow?

Yes, it has a six‑channel AC97 v2.2 audio codec.
