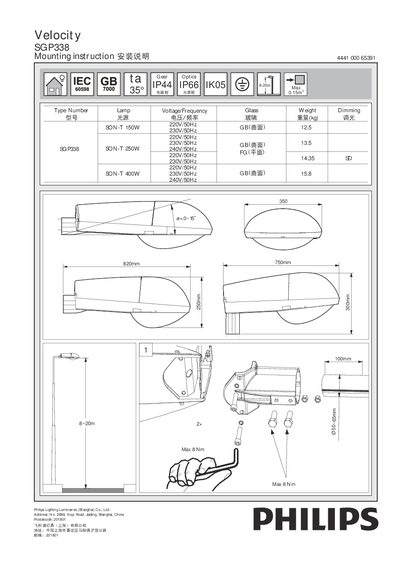

Philips SGP338 Installation Manual

Provides installation instructions for SGP338 lighting

Brand: Philips
Document type: Installation Guide
Language: Chinese
Pages: 4
File format: PDF
File size: 1.2 MB
Published: 12 March, 2012
Updated: 01 October, 2023
MD5 checksum: AA95E652DF71EFF017E9E1B8BE8F9683
PDF: Philips SGP338 Installation Manual PDF

About this manual

This guide provides step‑by‑step mounting instructions for the Philips SGP338 lamp, ensuring correct installation and alignment. The document includes diagrams and safety warnings to help users avoid common errors.

Technical data such as lamp type, voltage, power rating, weight and dimensions are listed, allowing users to verify compatibility with their fixtures and power supply. The manual also notes torque limits and recommended handling procedures. This manual is written in Chinese.

What's inside

Mounting Instructions
Lamp Specifications
Safety Information
Physical Dimensions

Specifications

Lamp type	SON‑T 150W
Voltage / Frequency	230 V / 50 Hz
Maximum torque	8 Nm
Dimensions (L × W)	820 mm × 750 mm

Frequently asked questions

How should the Philips SGP338 lamp be mounted?

Follow the mounting instructions shown in the manual under the heading "Mounting instruction".

What are the electrical specifications of the SGP338 lamp?

The lamp operates at 220 V or 230 V, 50 Hz, with power options of 150 W, 250 W and 400 W.
