Philips MBS145 Installation Guide

This manual provides detailed instructions on how to install the Philips MBS145 series luminaires.

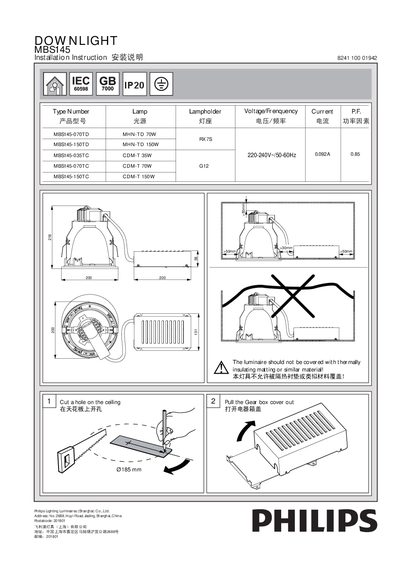

Philips MBS145 Installation Guide - cover page
Brand
Philips
Document type
Installation Guide
Language
English
Pages
2
File format
PDF
File size
625 KB
Published
12 March, 2012
Updated
30 September, 2023
MD5 checksum
CF35BB244113EE8DFCE7B3F769EF44E9
PDF
Philips MBS145 Installation Guide PDF

About this manual

The Philips MBS145 luminaire is installed by cutting a ceiling opening, inserting the unit, and securing it with two screws. The guide includes safety warnings such as not covering the luminaire with insulating material.

It explains how to connect the power cord to the terminal block, route it through the gear‑box grommet, and assemble the panel, reflector, and lamp. Maintenance steps cover lamp replacement and safety‑glass replacement.

What's inside

  • Safety Precautions
  • Mounting the Luminaire
  • Wiring Connections
  • Panel Removal
  • Reflector Installation
  • Lamp Installation
  • Maintenance

Specifications

Lamp typeMBSI45-035TC CDM-T 35W
Voltage / Frequency220-240V~ 50-60Hz
