This manual mainly introduces the features, usage and installation methods of the Essentialline BBP110 series products.
The BBP110 installation guide provides step‑by‑step instructions for mounting the Philips LED luminaire. It details opening and closing the power‑cable compartment, securing the unit with M8 screws, and connecting the power cable (H07RN‑F 3×1.5 mm).\n\nSafety requirements are emphasized, stating that only qualified electricians should perform the installation and that the main power must be switched off before any power‑supply replacement. Torque values for various fasteners are listed to ensure proper mechanical integrity. This manual is written in Chinese.

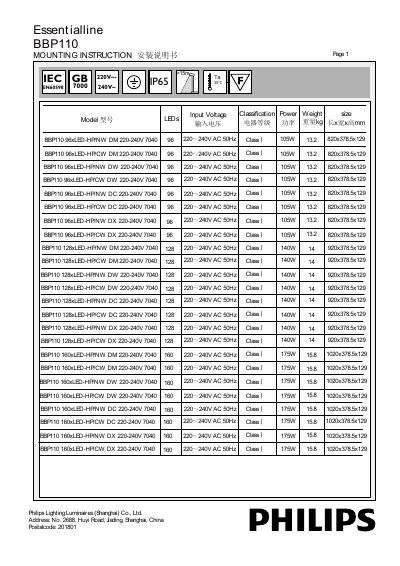

| Input Voltage | 220‑240V AC 50Hz |
|---|---|
| Size (96xLED) | 820 × 378.5 × 129 mm |
| Size (128xLED) | 920 × 378.5 × 129 mm |
| Size (160xLED) | 1020 × 378.5 × 129 mm |
The torque for the M8 screws is 1.2 Nm.
The luminaire shall be installed by a qualified electrician.
The main power must be turned off before replacing the power supply.
The power cable specified is H07RN‑F 3×1.5 mm.
