BGP150 LED post-top garden light installation instructions, including installation specifications, installation steps, and precautions.

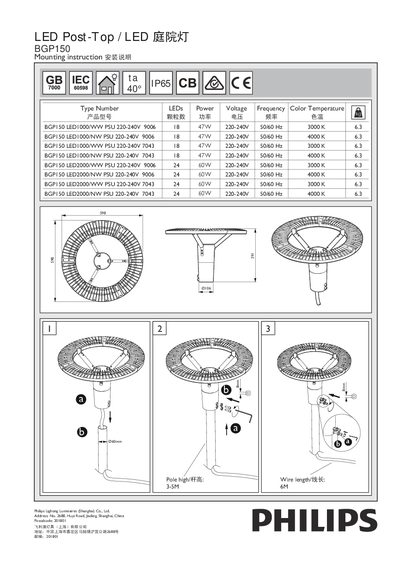

This manual provides the mounting instructions for the Philips BGP150 LED garden light. The luminaire must be installed by a qualified electrician and wired according to the latest IEE electrical regulations or national standards. It also notes that no waterproof box is supplied and that the external flexible cable must not be replaced; any damaged cable requires discarding the unit.
The document lists the technical specifications of the BGP150, including IP65 protection, power ratings of 47 W or 60 W, operating voltage 220‑240 V, frequency 50/60 Hz, colour temperatures of 3000 K or 4000 K, pole height 3‑5 m, wire length 6 m, and required power‑wire size 3×1 mm² with a diameter of 6‑8 mm. This manual is written in Chinese.
| Power | 47 W / 60 W |
|---|---|
| Voltage | 220‑240 V |
| Frequency | 50/60 Hz |
| Colour temperature | 3000 K / 4000 K |
| Pole height | 3‑5 m |
| Wire length | 6 m |
| Power‑wire size | 3×1 mm² (diameter 6‑8 mm) |
The luminaire shall be installed by a qualified electrician.
No, the external flexible cable cannot be replaced; if it is damaged, the luminaire must be discarded.
Power wires must be 3×1 mm² with a wire diameter of 6‑8 mm.
