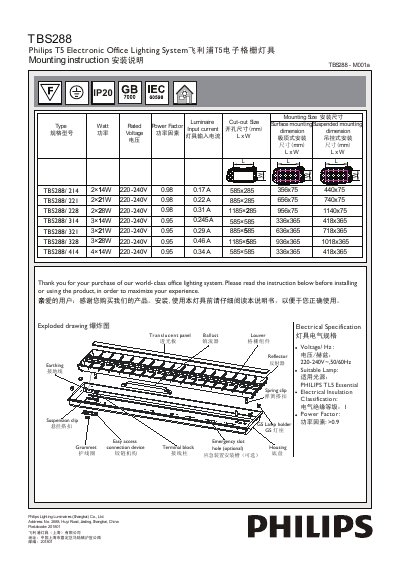

This document is the mounting instruction for Philips T5 Electronic Office Lighting System, which explains the components and installation details of the product.
This guide provides step‑by‑step instructions for installing the Philips TBS288 T5 electronic grille light, a ceiling‑mounted office lighting fixture. It includes safety warnings, electrical specifications, and recommended tools for both surface‑mounted and suspended installations.
Key procedures cover removing and fitting the louver, inserting the G5 lamp, connecting the ballast, and securing the luminaire to the ceiling. The document also details proper earthing, emergency slot installation, and maintenance tips such as regular cleaning and lamp replacement. This manual is written in Chinese.
| Voltage / Frequency | 220‑240 V~, 50/60 Hz |
|---|---|
| Power Factor | >0.9 |
| Suitable Lamp | PHILIPS TL5 Essential |
No, the luminaire must not be used in outdoor areas.
The luminaire operates on 220‑240 V, 50/60 Hz and must not be used below 170 V or above 264 V.
Installation must be performed by a qualified electrician.
For optimal performance, clean the luminaire twice a year.
