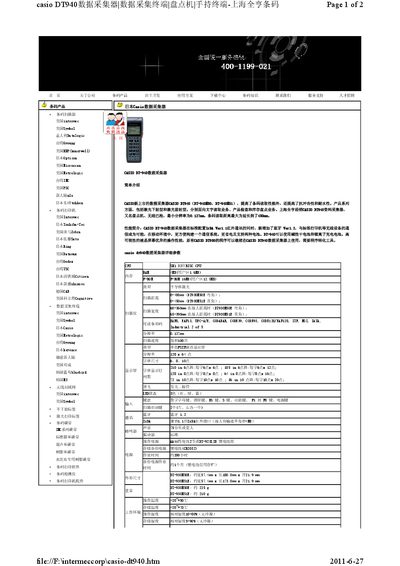

This document introduces the features and characteristics of CASIO DT-940 data collector, including barcode reading performance, impact resistance, and water resistance. The data collector supports Bluetooth communication and high visibility LCD screen, suitable for text reading, product inspection, and inventory counting business.
The Casio DT-940 is a handheld data‑collection terminal designed for barcode scanning in inventory, stock‑taking and mobile data capture applications. It supports a wide range of symbologies such as EAN‑13, UPC‑A, CODE‑39, CODE‑93, CODE‑128, ITF, MSI and IATA, and can communicate via IrDA and Bluetooth.
The device is built for rugged use with an IP54 protection rating and can withstand drops from up to 0.8 m. It operates on either two alkaline dry cells or a rechargeable DT‑923LIB lithium battery, providing up to 200 hours of continuous operation. The LCD displays 28 × 64 dots, and the barcode reading range extends to 360 mm. This manual is written in Chinese.
| IP Protection Rating | IP54 |
|---|---|
| Battery Options | 2× alkaline dry cells or DT‑923LIB rechargeable lithium battery |
| Battery Life | 200 hours |
| Display Resolution | 28 × 64 dots |
| Bluetooth Connectivity | Supported (Bluetooth Yerl.2) |
| IrDA Interface Speed | Up to 4 kbps |
It can be powered by two alkaline dry cells or a DT‑923LIB rechargeable lithium battery.
The device has an IP54 rating, providing protection against dust and water splashes.
Yes, the device includes Bluetooth (Yerl.2) for wireless connections.
