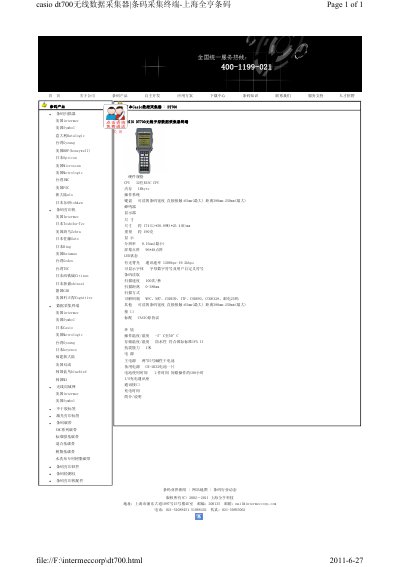

This document introduces the hardware specifications and features of the CASIO DT700 wireless handheld data collection terminal, including a 32-bit RISC CPU, 1Mbyte memory, the ability to read multiple types of barcodes, a display resolution of 0.15mm, etc.
The Casio DT700 is a handheld wireless data collector designed for barcode scanning in industrial and commercial environments. It features a 32‑bit RISC CPU, 1 MB of memory, and supports multiple symbologies including WPC, NW7, CODE39, ITF, CODE93, CODE128 and postal 25 code.
The device meets IPX II waterproof standards, can survive a 1 m shock, and operates from -5 °C to 50 °C. It scans at up to 100 scans per second with a maximum read distance of 380 mm, and is powered by two AA alkaline batteries with an optional CR‑2032 backup cell. This manual is written in Chinese.
| CPU | 32‑bit RISC |
|---|---|
| Memory | 1 Mbyte |
| Operating Temperature | -5 °C to 50 °C |
| Waterproof Rating | IPX II |
| Shock Resistance | 1 m |
| Scan Speed | 100 scans per second |
| Maximum Scan Distance | 0‑380 mm |
| Supported Barcode Types | WPC, NW7, CODE39, ITF, CODE93, CODE128, postal 25 code |
| Dimensions | 174 mm × 58.89 mm × 25.4 mm |
| Weight | ≈190 g |
| Display Resolution | 0.15 mm (minimum) |
| Screen Matrix | 96 × 48 dots |
| Communication Speed | 1200 bps – 19.2 kbps |
| Primary Power | Two AA alkaline batteries |
| Backup Power | CR‑2032 coin cell |
| Battery Life (intermittent) | ≈100 hours |
It can decode WPC, NW7, CODE39, ITF, CODE93, CODE128 and postal 25 code.
The device scans at 100 scans per second.
Yes, it meets the IPX II waterproof standard.
It operates from –5 °C to 50 °C.
