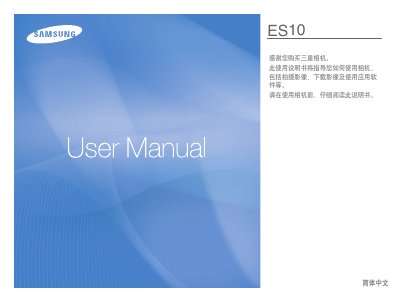

This document is a user manual for Samsung cameras, providing instructions on how to use the camera to capture images, download images, and use the accompanying software.
This manual guides users through the basic setup of the Samsung ES10 camera, including safety warnings, battery handling, and how to connect the camera to a computer using the supplied USB cable. It also explains the installation of Samsung’s companion software for image transfer and editing.
The document details the camera’s shooting modes, autofocus types, ISO settings, flash operation, and other features. Technical specifications such as sensor type, lens focal length, LCD size, battery options, dimensions, and environmental limits are listed, along with service and warranty information. This manual is written in Chinese.
| Image sensor type | 1/2.5" CCD |
|---|---|
| Effective pixels | ≈ 8.1 MP |
| Lens focal length | 6.3–18.9 mm (35 mm equiv. 38–114 mm) |
| LCD display | 2.5" TFT LCD, 230 000 pixels |
| Battery options | 2×AA alkaline or SNB‑2512 Ni‑MH 2500 mAh |
| Dimensions (W×H×D) | 94.1 × 62.7 × 26.8 mm |
| Weight | ≈ 120 g (without battery & card) |
| Operating temperature | 0 °C – 40 °C |
Insert the supplied USB data cable into the computer’s USB port and the camera’s USB connector, then open the removable disk in Windows Explorer.
The camera can use two AA alkaline batteries or an optional SNB‑2512 Ni‑MH rechargeable battery (2500 mAh). Use high‑capacity batteries and avoid manganese cells.
Do not point the flash at people or animals; close proximity can damage eyesight.
The camera is designed to operate between 0 °C and 40 °C.
