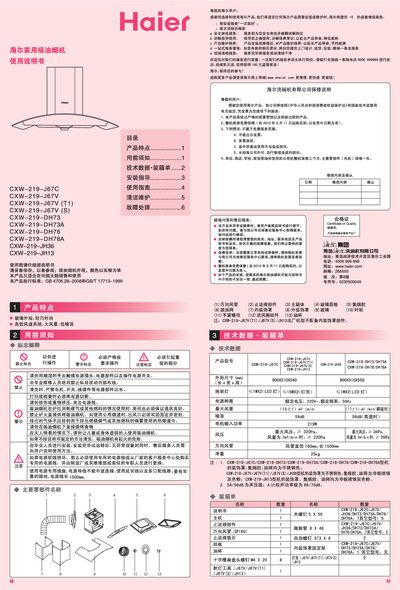

This manual explains how to install the Haier CXW-219-J67C range hood safely, including required tools, wall preparation, fixing brackets, and connecting the universal duct. It also describes the control panel functions, lighting, speed settings, and how to operate the unit for optimal ventilation.
Maintenance procedures cover daily cleaning, periodic deep cleaning of the oil cup, filter, and fan wheel, as well as lamp replacement and troubleshooting common faults such as power loss or abnormal noises. Safety warnings and warranty information are included throughout. This manual is written in Chinese.
| Dimensions (L×W×H) | 900 mm × 510 mm × 540 mm |
|---|---|
| Maximum wind volume | ≈15 m³/min |
| Noise level | 54–56 dB |
| Power supply | 220 V, 50 Hz |
| Lamp power (max) | 15 W |
Mark the fixing points, drill 8 mm holes 55 mm deep, insert expansion tubes, secure the brackets with screws, then hang the main unit on the mounting plate.
Remove the oil cup by pulling it outward, then detach the oil filter (oil net) by unscrewing its fastener, soak it in warm water with detergent, rinse and dry before reinstalling.
Ensure the power plug is fully inserted, verify that the wall socket has power, and check that the fuse is intact; if the problem persists, contact an electrician.
Use a replacement bulb not exceeding 15 W, insert it with the provided tool, turn clockwise to lock, and ensure proper contact with the socket.
