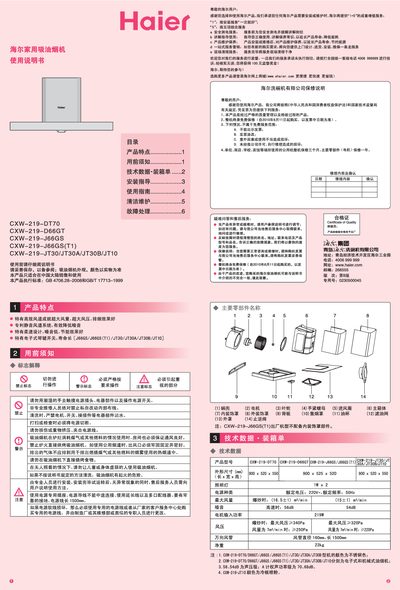

This manual covers the features, safety precautions, and technical specifications of the Haier CXW-219 kitchen range hood series, including models DT70, D66GT, J66GS, J66GS(T1), JT30, JT30A, JT30B, and JT10. It explains the high‑efficiency wind‑channel design, low‑noise patented system, and electronic key switch.
The guide details step‑by‑step installation, proper wiring, and mounting requirements, followed by operating instructions, regular cleaning of the oil cup, filter and fan, and a troubleshooting table for common faults such as power issues, fan imbalance, and abnormal noises. This manual is written in Chinese.
| Rated Voltage | 220 V |
|---|---|
| Rated Frequency | 50 Hz |
| Noise Level (high speed) | 56 dB |
| Air Duct Diameter | 160 mm |
| Power Cord Length | 1500 mm |
| Net Weight | 23 kg |
When the oil level reaches the mark, pull the oil cup outward and remove it for cleaning.
Check that the power plug is fully inserted; if the socket has no power, restore the supply or contact an electrician.
The oil filter should be cleaned weekly to maintain proper suction.
Adjust the installation height to fall within the required range specified in the manual.
