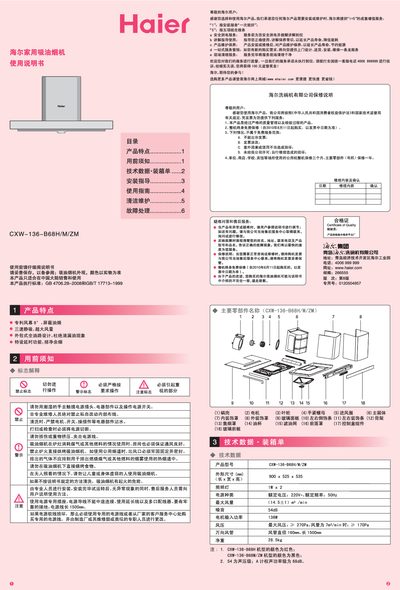

This manual provides safety guidelines, installation steps, and operating instructions for the Haier CXW-136-B68H/M/ZM kitchen range hood. It includes wiring requirements, mounting procedures, and tips for proper ventilation.
The document also covers routine cleaning, maintenance, and troubleshooting, offering detailed procedures for oil‑cup removal, filter cleaning, and fault diagnosis such as power loss or abnormal noises. This manual is written in Chinese.
| Model | CXW-136-B68HVM/ZI |
|---|---|
| Dimensions (W×H×D) | 900 × 525 × 535 mm |
| Lighting lamps | 2 |
| Power supply | 220 V, 50 Hz |
| Maximum airflow | 14.5 m³/min |
| Noise level | 54 dB |
| Motor input power | 136 W |
| Maximum wind pressure | 270 Pa |
| Duct diameter | 160 mm |
| Net weight | 28.5 kg |
Pull the oil cup outward, remove it, and clean the waste oil before reinstalling.
Check that the power plug is securely inserted and that the socket has power; if not, connect the power or call an electrician.
