Key facts
- Brand
- EDIFIER
- Model
- S2000
- Category
- Audio Power Amplifier
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-02-25
Start here

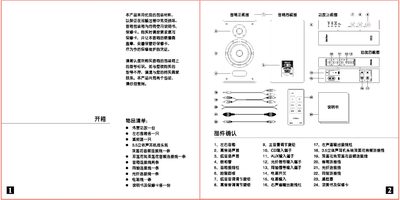

Edifier S2000 Speaker User Manual
This manual begins with the unboxing checklist, listing the external amplifier, left and right speakers, remote control, various audio cables, power cable, and warranty card. It then guides you through connecting the speakers to the amplifier, selecting audio sources (CD, AUX, optical, coaxial), and configuring the remote control, including battery replacement.
Further sections cover proper speaker placement, power‑on procedures, recommended burn‑in (煲箱) time, safety precautions, and detailed troubleshooting for issues such as no sound, low volume, or digital‑signal incompatibility. Technical specifications of the amplifier and speakers are also provided. This manual is written in Chinese.
EDIFIER S2000 specifications
| Rated Output Power | RMS 40W ×2 per channel |
|---|---|
| Input Impedance | 50 kΩ |
| High‑frequency Driver | 1 in dome, 6 Ω, magnetically shielded |
| Dimensions (W×H×D) | 176 mm × 331 mm × 319 mm |
| Weight | ≈17.2 kg |
All EDIFIER S2000 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How should the speaker cables be connected?
Connect the red terminals of the main and sub speakers together, and the black terminals together, making sure no short circuit occurs.
Why is there noise from only one speaker when the system powers on?
The S2000v includes an in‑rush‑current suppression feature; a single‑speaker click at power‑on is normal and not a fault.
