EIZO FlexScan HD2442W High-Definition Widescreen Display Product Leaflet

FlexScan HD2442W is a 24.1-inch HD widescreen monitor with dual PC and dual HDMI (High-Definition Multimedia Interface) ports that can connect to both PC and the latest high-definition game consoles and audio/video (AV) devices. The monitor also has several new features that are popular with movie and game enthusiasts, which can realize smooth picture playback in movie and game modes.

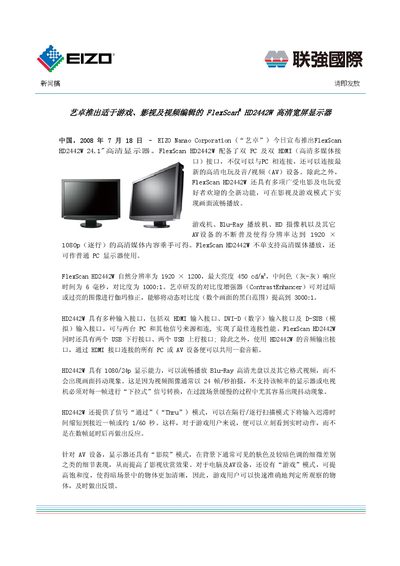

EIZO FlexScan HD2442W High-Definition Widescreen Display Product Leaflet - cover page
Brand
EIZO
Category
Monitor
Document type
Product Leaflet
Language
Chinese
Pages
2
File format
PDF
File size
172 KB
Published
23 February, 2012
Updated
01 October, 2023
Model
HD2442W
MD5 checksum
60D13FC7AFF48C1D59F05E6AA6C1E1FD

About this manual

The FlexScan HD2442W is a 24.1‑inch high‑definition widescreen monitor released by EIZO (Nanao Corporation). It targets gamers and movie enthusiasts with a native resolution of 1920 × 1200 and a maximum brightness of 450 cd/m².

Key features include dual HDMI, DVI‑D and D‑SUB inputs, two USB upstream and two downstream ports, audio output via HDMI, a 6 ms response time, static contrast of 1000:1 (dynamic up to 3000:1), and a variety of picture modes such as Standard, Full, Full‑screen, cinema, and game. The monitor is backed by a five‑year limited warranty and a three‑year LCD panel warranty. This manual is written in Chinese.

What's inside

  • Display Overview
  • Resolution and Image Quality
  • Brightness and Contrast
  • Input Connections
  • USB Ports
  • Audio Output
  • Picture Modes
  • Warranty and Reliability

Specifications

Native resolution1920×1200
Maximum brightness450 cd/m²
Static contrast ratio1000:1
Dynamic contrast ratioup to 3000:1
Response time6 ms
HDMI inputs2
USB upstream ports2
USB downstream ports2
Audio outputvia HDMI
1080/24p display capabilitySupported
Warranty5‑year limited
Panel life30,000 hours

Frequently asked questions

What is the native resolution of the FlexScan HD2442W?

The monitor’s native resolution is 1920 × 1200.

How many HDMI inputs does the monitor have?

It provides two HDMI input ports.

What picture modes are available on the HD2442W?

The display offers three screen modes—Standard, Full, Full‑screen—as well as seven PC image modes (text, image, movie, custom, SRGB, game, WindowMovie) and five AV device modes.

What warranty does the FlexScan HD2442W include?

It comes with a five‑year limited warranty, and the LCD panel is covered for three years.
