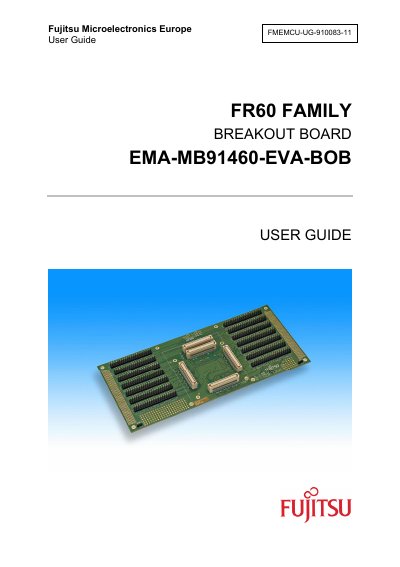

This user guide describes the use of the FR60 series break-out board EMA-MB91460-EVA-BOB
The Fujitsu EMA-MB91460-EVA-BOB breakout board provides access to all signals of the FR60 microcontroller development system. The guide describes the board’s layout, prototype areas, jumpers, connectors, and installation steps for use in an evaluation laboratory environment.
Additional sections cover warranty terms, RoHS compliance for China, recycling instructions, and where to find further product information on Fujitsu’s websites. This manual is written in Chinese.
| Prototype area grid spacing | 1.27 mm and 2.54 mm |
|---|---|
| Default jumper R223 | 0 Ω (open) |
Fujitsu warrants the product’s performance for 90 days and hardware components for 1 year from receipt.
Send the device to Fujitsu Microelectronics Europe GmbH Warehouse/Disposal address as specified for EU WEEE compliance.
