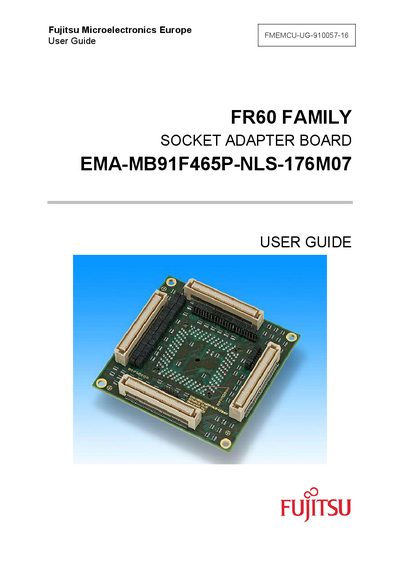

This manual introduces the product features, usage methods and maintenance methods of EMA-MB91F465P-NLS-176M07 board
The EMA-MB91F465P-NLS-176M07 socket adapter board provides a development platform for Fujitsu FR60 MB91V460 flash microcontrollers. It enables designers to begin software development before silicon samples are available and is intended for use only in an evaluation laboratory environment.
The guide covers an overview of the board, installation steps, jumper settings, connector details, mechanical dimensions, regulatory information, and disposal instructions for EU compliance.
| VDDS5 voltage | 5 V |
|---|---|
| VDD35 voltage (5 V configuration) | 5 V |
| VDD5 voltage | 3.3 V |
| VDD35 voltage (3.3 V configuration) | 3.3 V |
| Ports not routed to target board | P30_[0:7], P32_3, P32_7, P33_3, P33_7, P34_3, P34_7, P35_3, P35_7 |
The device must be returned to Fujitsu Microelectronics Europe GmbH Warehouse, Monzastraße 4a, 63225 Langen, for proper recycling according to the EU WEEE directive.
Ports P30_[0:7], P32_3, P32_7, P33_3, P33_7, P34_3, P34_7, P35_3, and P35_7 are not routed to the target board.
