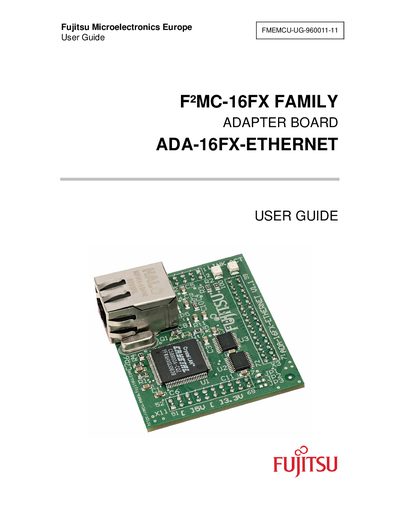

This document describes the use of the ADA-16FX-ETHERNET board for the F²MC-16FX family
The ADA-16FX-ETHERNET is an Ethernet adapter board designed to extend the SK-16FX‑EUROSCOPE evaluation board with 10BaseT Ethernet connectivity. It is intended for software development and testing in an evaluation laboratory environment.
The guide covers installation, jumper and LED configuration, connector details, warranty, RoHS compliance and recycling instructions, helping users set up the board safely and correctly.
| Ethernet connectivity | 10BaseT |
|---|---|
| Power supply voltage | 5 V (default) |
| Jumper JP10 setting | 1‑2 selects 5 V, 2‑3 selects 3.3 V |
| Default chip select jumper | JP1 closed (CS2 connected) |
| Ethernet jack center tap selection | JP4 and JP5 set to 1‑2 by default |
The board is designed for a 5 V power supply; the JP10 jumper can be set to 5 V (1‑2) or 3.3 V (2‑3).
JP1 is closed by default, connecting chip‑select signal CS2 to the Ethernet chip.
Set JP4 and JP5 to the 1‑2 position, which selects pins 4 and 5 of the Ethernet jack as center taps.
