Fujitsu A6030-CTOC laptop features Intel Core 2 T5600 processor, 15.4-inch WXGA display, built-in 2GB DDR2 667MHz memory, 120GB hard drive, DVD±R/RW dual mode write and rewrite burner, supports Windows Vista Business operating system.

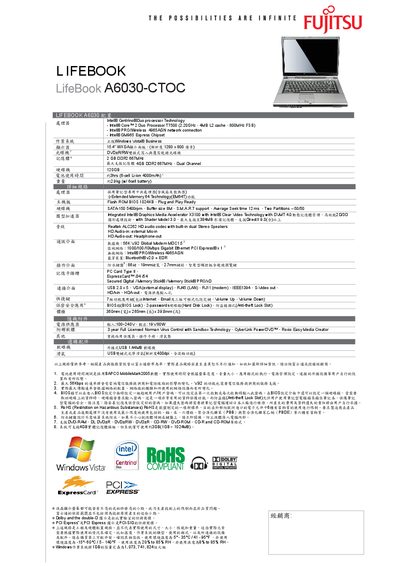

This manual introduces the Fujitsu LifeBook A6030-CTOC notebook, describing its processor, memory, storage, display, graphics, audio, and built‑in peripherals, as well as the pre‑installed Windows Vista Business operating system.
It also lists detailed technical specifications, battery performance, physical dimensions, power adapter information, security features, and regulatory notes, helping users understand and operate the device safely and efficiently. This manual is written in Chinese.
| Processor | Intel Core 2 Duo T7500 2.20 GHz, 4 MB L2 cache, 800 MHz FSB |
|---|---|
| Display | 15.4" WXGA panel, 1280 × 800 pixels |
| Memory | Up to 4 GB DDR2 667 MHz, Dual Channel |
| Storage | SATA‑150 5400 rpm HDD, 8 MB buffer, SMART support, 12 ms average seek, two 50/50 partitions |
| Audio | Realtek ALC262 HD audio codec with built‑in dual stereo speakers |
| Wireless LAN | Intel PRO/Wireless 4965AGN |
| Ethernet | Gigabit Ethernet 10/100/1000 Mbps PCI‑Express x1 |
| Bluetooth | Bluetooth v2.0 + EDR |
| Battery | 6‑cell Li‑ion 4000 mAh, up to 3 hours runtime |
| Weight | Approximately 2.9 kg (with battery) |
| Dimensions | 360 mm × 265 mm × 39.8 mm (W × D × H) |
| Power Adapter | Input 100‑240 V, Output 19 V 80 W |
| Operating System | Windows Vista Business (licensed) |
| Optical Drive Formats | DVD‑RAM, DVD‑+R, DVD‑+RW, DVD‑R, CD‑RW, CD‑R, CD‑ROM |
| Ports | USB 2.0 x5, VGA, RJ45, RJ11, IEEE‑1394, S‑Video out, HDA‑in/out |
| Security Features | BIOS lock, hard‑disk lock, anti‑theft lock slot |
It uses an Intel Core 2 Duo T7500 processor running at 2.20 GHz with a 4 MB L2 cache and an 800 MHz front‑side bus.
The 6‑cell 4000 mAh Li‑ion battery provides up to about 3 hours of use.
Windows Vista Business (licensed) is the pre‑installed operating system.
