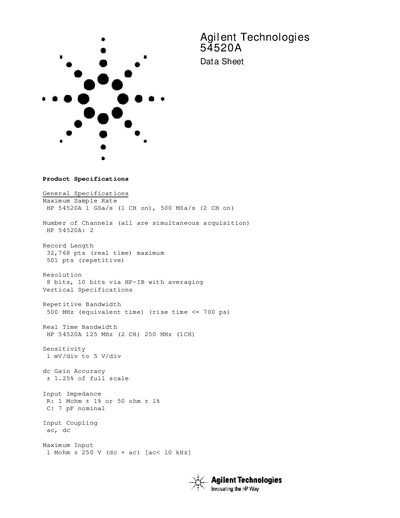

Agilent Technologies 54520A data sheet provides information on the product's specifications, including maximum sample rate, number of channels, record length, resolution, vertical specifications, horizontal specifications, and more.
The Agilent 54520A is a high‑performance oscilloscope offering up to 1 GSa/s sample rate, 2 channels, 8‑bit resolution, and a maximum real‑time record length of 32,768 points. It includes a range of measurement functions, math analysis, and display options such as monochrome CRT or color TFT screens.
Optional features include a telecommunications mask option for mask‑template testing and active probing accessories. The instrument supports HP‑IB, RS‑232, and Centronics interfaces, and provides environmental specifications such as 115/230 Vac power and a net weight of about 11.8 kg.
| Maximum Sample Rate | 1 GSa/s (single channel) |
|---|---|
| Number of Channels | 2 |
| Record Length (real time) | 32,768 points |
| Resolution | 8 bits |
| Real‑Time Bandwidth | 125 MHz (2 CH) / 250 MHz (1 CH) |
| Input Impedance | 1 MΩ ± 1 % |
| Power Voltage | 115/230 Vac, –25 % to +15 %, 48‑440 Hz |
| Weight (net) | ≈ 11.8 kg |
| Dimensions | Height 218 mm × Width 440 mm × Depth 367 mm |
The oscilloscope can sample at up to 1 GSa/s on a single channel (500 MSa/s when both channels are used).
It operates from 115 V or 230 V AC, 48 – 440 Hz, with a power consumption up to 350 VA.
