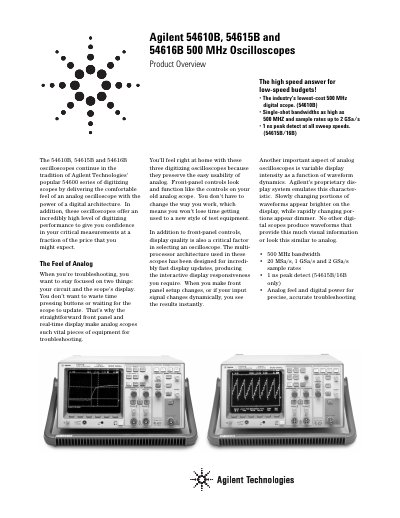

Agilent 54610B, 54615B and 54616B 500 MHz Oscilloscopes continue in the tradition of Agilent Technologies’ popular 54600 series of digitizing scopes by delivering the comfortable feel of an analog oscilloscope with the power of a digital architecture. In addition, these oscilloscopes offer an incredibly high level of digitizing performance to give you confidence in your critical measurements at a fraction of the price that you might expect.
The handbook introduces the Agilent 54610B, 54615B and 54616B 500 MHz oscilloscopes, highlighting their analog‑feel front panel combined with powerful digital architecture. It describes the high‑speed performance, sample‑rate options and the unique 1 ns peak‑detect capability of the higher‑end models.
Detailed sections cover optional enhancement modules, PC connectivity via IntuiLink, TV/video triggering features, and full technical specifications such as bandwidth, vertical accuracy, and environmental requirements. Ordering information and accessory options are also listed.
| Bandwidth | 500 MHz |
|---|---|
| Maximum Sample Rate (54610B) | 20 MSa/s |
| Peak Detect (54615B/54616B) | 1 ns |
All three models have a 500 MHz bandwidth.
The 54615B and 54616B models support 1 ns peak‑detect.
Yes, optional GPIB or RS‑232/parallel modules enable remote control and data transfer.
