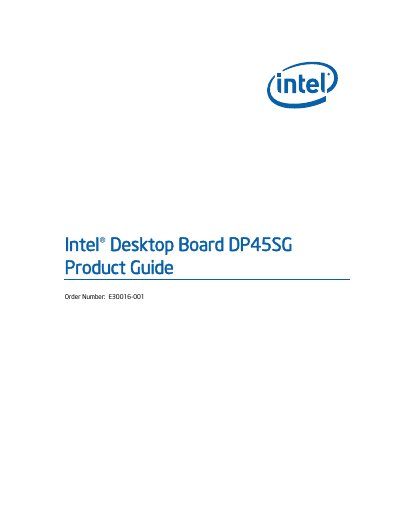

This manual introduces the features and characteristics of Intel® Desktop Board DP45SG products
This product guide describes the Intel DP45SG desktop board, covering hardware layout, component installation, BIOS updates and regulatory compliance. It is intended for technically qualified personnel who install or service the board in PCs and similar environments.
The guide includes chapters on board features, installing components, updating the BIOS, configuring RAID and Rapid Recover Technology, error messages, and safety certifications. Detailed tables list specifications such as form factor, supported processors, memory, chipset, audio, LAN, USB, SATA and PCI Express interfaces.
| Form Factor | ATX |
|---|---|
| Processor Socket | LGA775 |
| Maximum Memory | 8 GB DDR3 |
| Chipset | Intel P45 Express |
| Audio Subsystem | 8‑channel (7.1) HD Audio |
| LAN Controller | Intel 82567LF Gigabit Ethernet |
| USB 2.0 Ports | 12 (6 rear, 6 via headers) |
| SATA Channels | 6 (3.0 Gb/s) |
| PCI Express x16 Slots | 2 |
| Power Management | ACPI support |
It supports Intel processors in the LGA775 package.
The board supports up to 8 GB of DDR3 system memory.
Yes, it supports Intel Matrix Storage Technology with RAID and Intel Rapid Recover Technology.
The board provides up to 12 USB 2.0 ports, six on the back panel and six via internal headers.
