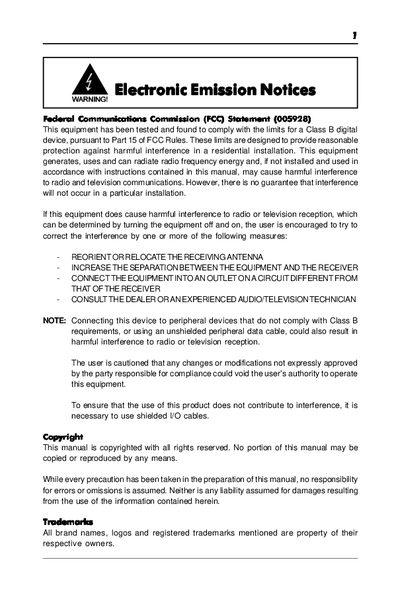

This document is the FCC certification document for a certain device. It mainly introduces that the device complies with the relevant FCC regulations.
This manual provides detailed information on the Intel 845G/GL/GE/PE/GV chipset motherboards, including key features, hardware layout, jumper settings, and BIOS configuration. It guides users through installing DDR memory, processors, and peripheral devices while describing supported technologies such as AGP 2.0, USB 2.0, and on‑board LAN.
The document also includes safety notices, FCC compliance statements, and troubleshooting tips. It serves both end‑users and technicians who need to configure system parameters, update the BIOS, or perform hardware maintenance on these motherboards.
| Chipset | Intel 845G/GL/GE/PE/GV |
|---|---|
| Supported CPUs | Intel Pentium 4 and Northwood processors (478‑pin) |
| Processor System Bus Frequency | 400 MHz (100 MHz bus clock) or 533 MHz (only for 845G/GE/PE/GV) |
| Maximum Memory Capacity | 2.0 GB DDR SDRAM |
| Supported Memory Types | DDR200/266 unregistered, 184‑pin non‑ECC DIMMs; DDR333 up to 2 GB (only 845GE/PE/GV) |
| Maximum Memory Speed (GE/PE/GV) | 333 MHz DDR SDRAM |
| AGP Support | AGP 2.0, 1x/2x/4x, 1.5 V only |
| AGP Voltage | 1.5 V connector only (no 3.3 V) |
| On‑board LAN | Realtek RTL8100BL, 10/100 Mbps, PCI bus master |
Jumper JP1 controls the system bus frequency for the 845G/GE/PE/GV models.
The board supports up to two DDR DIMM slots, either single‑sided or double‑sided.
No, the AGP slot only supports a 1.5 V connector; 3.3 V cards are not supported.
The 845GE/PE/GV variants can run DDR SDRAM at up to 333 MHz.
