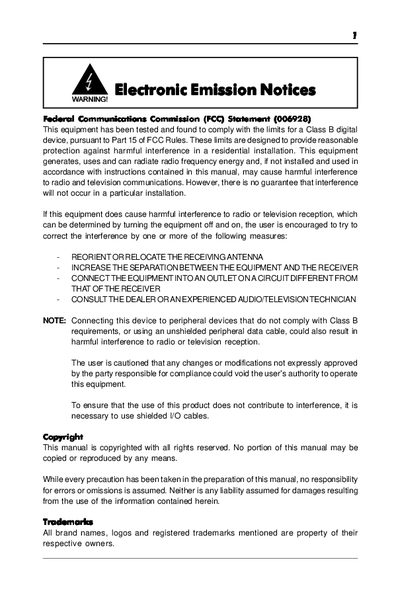

This document is a FCC statement, which states that the product complies with FCC regulations.
This booklet provides detailed information on the Intel 845G/GL/GE/PE/GV chipset motherboards, including key features, hardware layout, jumper settings, and pin assignments. It guides users through installing DDR DIMMs, processors, and configuring BIOS options.
The document also describes integrated components such as the on‑board AC97 audio codec, Realtek LAN controller, USB host controllers, and AGP 2.0 support, as well as power‑management and advanced chipset features.
| Processor support | Intel Pentium 4 processors |
|---|---|
| Maximum memory | 2.0 GB DDR SDRAM (200 MHz or 266 MHz) |
| AGP support | AGP 2.0 (1×/2×/4×) |
| On‑board LAN | Realtek RTL8100BL PCI LAN (optional) |
| Audio codec | Integrated AC97 audio codec |
Set jumper JP2 to the CMOS Clear position as described in the Jumper Settings section.
Use jumper JP7; set it to the On board LAN Enable position to enable, or to the On board LAN Disable position to disable.
After installing the processor, enter the BIOS setup and adjust the CPU speed settings as needed.
