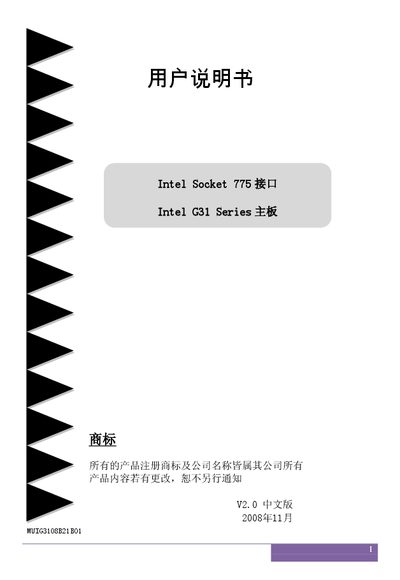

This document is a user manual that introduces the ownership of registered trademarks and company names of the brand's products. It also reminds users to pay attention to operating rules to avoid static damage to the equipment. It also lists common self-test code tables and methods for installing BIOS settings, drivers, and applications.
The MUIG3108B21B01 is a desktop motherboard built on the Intel G31 + ICH7 chipset and designed for Socket LGA775 processors, supporting Intel Core and Celeron CPUs. It offers dual‑channel DDR2 memory, multiple PCI/PCI‑E slots, USB 2.0, Realtek Ethernet, SATA II, and optional HDMI/Audio interfaces.
The manual covers accessories, board introduction, detailed specifications, system block diagram, CPU and memory installation, jumper settings, rear and internal I/O, BIOS configuration, driver installation, common FAQs, BIOS update procedure, and warranty information. This manual is written in Chinese.
| Supported Processors | Socket LGA775 65nm/45nm Intel quad‑core CPUs |
|---|---|
| Chipset | Intel G31 + ICH7 |
| Memory | 2 DDR2 DIMM slots, up to 4 GB DDR2 667/800 MHz, dual‑channel |
| Expansion Slots | 2 PCI, 1 PCI‑E x1, 1 PCI‑E x16 |
| USB Ports | 8 USB 2.0 ports (4 rear, 4 additional) |
| SATA | 4 SATA II ports, up to 300 MB/s |
| Dimensions | 245 mm × 190 mm × 40 mm (MTX form factor) |
The board has two DDR2 DIMM slots and supports up to 4 GB of DDR2 667/800 MHz memory.
