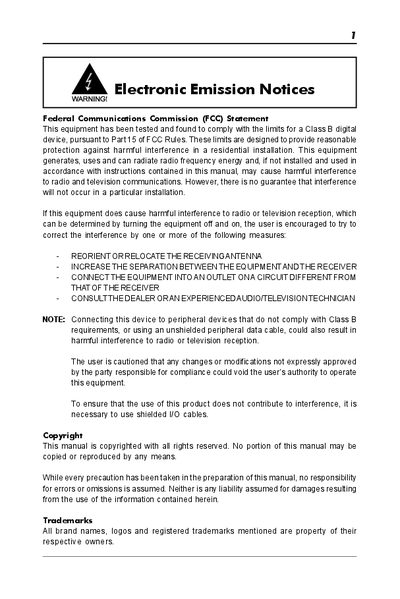

This clause states the Federal Communications Commission (FCC) statement
This manual provides detailed information on the hardware configuration of the 845G/GL/GE/PE/GV motherboard, including chipset details, supported processors, memory specifications, and expansion slots. It also explains the rear panel connectors, on‑board I/O, and optional features such as AC97 audio and IEEE1394.
Additional sections cover BIOS setup, power management options, RAID configuration, driver installation, and safety precautions. The appendix includes driver CD usage instructions and warranty notes.
| Chipset | ATI RS480/RX480 + SB400 |
|---|---|
| Supported Processor | AMD K8 in Socket754 |
| VRM Voltage Range | 0.800 V to 1.55 V (25 mV steps) |
| Memory Slots | Two 184‑pin DDR SDRAM sockets |
| Supported DDR Memory | 64 MB – 2 GB, 266/333/400 MHz |
It supports AMD K8 processors in a Socket754 package.
The VRM can be adjusted from 0.800 V to 1.55 V in 25 mV steps.
