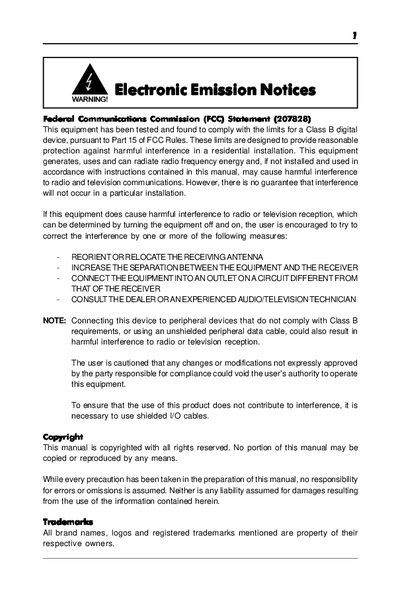

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions contained in this manual, may cause harmful interference to radio and television communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - REORIENT OR RELOCATE THE RECEIVING ANTENNA - INCREASE THE SEPARATION BETWEEN THE EQUIPMENT AND THE RECEIVER - CONNECT THE EQUIPMENT INTO AN OUTLET ON A CIRCUIT DIFFERENT FROM THAT OF THE RECEIVER - CONSULT THE DEALER OR AN EXPERIENCED AUD
This booklet describes the hardware configuration of Intel 845G/GL/GE/PE/GV chipset motherboards, including key features, layout, jumper settings, and BIOS options. It also covers installation procedures for DDR memory, processors, and peripherals, as well as power‑management and flash‑update steps.
Detailed sections cover the integrated VGA, AGP controller, on‑board I/O, USB ports, and optional LAN and AC97 audio. The document includes BIOS setup menus, advanced chipset features, and troubleshooting information such as password management and CMOS clearing.
| Chipset | Intel 845G/GL/GE/PE/GV |
|---|---|
| Supported Processors | Intel Pentium 4 and Northwood (478‑pin) |
| Memory Capacity | Up to 2.0 GB DDR SDRAM (200 MHz/266 MHz, 333 MHz for 845GE/PE/GV) |
| AGP Slot | AGP 2.0, 1.5 V connector only |
| USB Controllers | 3 UHCI + 1 EHCI (USB 2.0) host controllers |
| On‑board VGA | Core 200 MHz, up to 1600×1200 8‑bit color |
| Power Management | Supports ACPI, APM and SMM |
The board supports up to two DDR DIMM slots.
Only a 1.5 V AGP connector is supported; 3.3 V connectors are not.
Use the AWDFLASH.EXE program from the utility diskette, boot a DOS floppy, and run the utility.
Set jumper JP2 to the CMOS Clear position.
