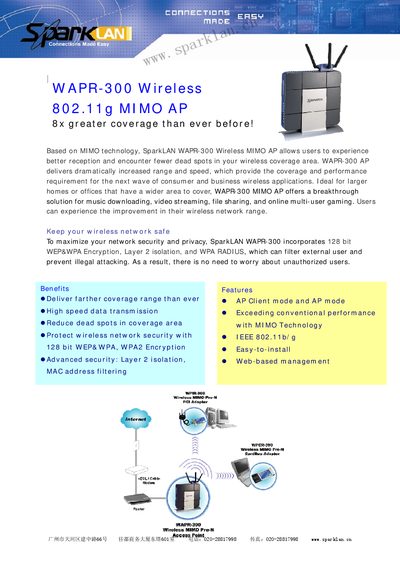

WAPR-300 Wireless 802.11g MIMO AP is a product of SparkLAN. It is based on MIMO technology and can provide a wider coverage and higher speed. It is ideal for larger homes or offices. This product also provides AP Client mode and AP mode, and supports 128 bit WEP&WPA encryption, Layer 2 isolation and WPA RADIUS.
The SparkLAN WAPR-300 Wireless MIMO Access Point delivers extended coverage and high‑speed data transmission for homes and offices. It supports IEEE 802.11b/g standards, uses 2dBi reverse‑SMA antennas, and includes web‑based management with advanced security features such as 64/128‑bit WEP, WPA/WPA2 with TKIP/AES, WPA RADIUS, Layer 2 isolation, and MAC address filtering.
The manual includes hardware specifications, installation steps, and operating guidelines. Power is supplied via an AC 110‑240 V input with a 12 V 0.5 A DC output, and the device operates in temperatures from 0 °C to 40 °C (storage up to 70 °C) with humidity up to 85 % non‑condensing. LED indicators show power, WLAN, and LAN status, and the unit provides one 10/100 Mbps Ethernet port.
| Interface | 1x10/100Base‑T Ethernet switch port |
|---|---|
| Antenna | 2dBi Reverse SMA antenna |
| Wireless Standard | IEEE 802.11b/g |
| Frequency Band | 2.412 ~ 2.4835 GHz (ISM‑Band) |
| Transmit Power (g) | 13‑15 dBm |
| Receive Sensitivity (g) | -75 dBm |
| Power Consumption | TX 320 mA @5 V, RX 350 mA @5 V |
| Input Voltage | AC 110‑240 V |
| Output Voltage | DC 12 V, 0.5 A |
| Operating Temperature | 0 °C ~ 40 °C |
| Storage Temperature | 0 °C ~ 70 °C |
| Humidity Range | 10 % ~ 85 % non‑condensing |
It complies with IEEE 802.11b and 802.11g standards.
The AP is equipped with a 2 dBi reverse‑SMA antenna.
