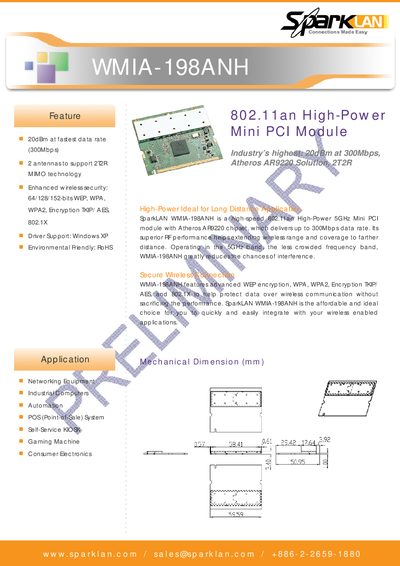

SparkLAN WMIA-198ANH is a high-speed 802.11an high-power 5GHz Mini PCI module with Atheros AR9220 chipset, delivering up to 300Mbps data rate. Its superior RF performance helps extend wireless range and coverage. Operating in the 5GHz band, WMIA-198ANH greatly reduces the chances of interference. It features advanced WEP encryption, WPA, WPA2, Encryption TKIP/AES, and 802.1X to ensure secure wireless communication.
The WMIA-198ANH is a high‑power Mini PCI wireless LAN module designed for networking, gaming machines, and consumer electronics. It supports dual‑band 802.11a/b/g/n operation and includes MIMO technology for improved range and throughput.
The manual lists key specifications such as a maximum data rate of 300 Mbps, 2‑antenna 2T2R MIMO, various security protocols (WEP, WPA, WPA2, TKIP, AES, 802.1X), and a 32‑bit Mini PCI Type IIIA host interface. Environmental ratings, operating temperature, humidity ranges, and driver support for Windows XP are also provided.
| Maximum data rate | 300 Mbps |
|---|---|
| Antenna configuration | 2 antennas, 2T2R MIMO |
| Security protocols | 64/128/152‑bit WEP, WPA, WPA2, TKIP, AES, 802.1X |
| Driver support | Windows XP |
| Host interface | 32‑bit Mini PCI, Type IIIA |
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -20 °C to 70 °C |
| Operating humidity | 5 % to 90 % |
| Dimensions | 59.59 mm × 50.95 mm |
The module can achieve up to 300 Mbps at its fastest data rate.
The provided driver supports Windows XP.
It supports 64/128/152‑bit WEP, WPA, WPA2, TKIP, AES, and 802.1X authentication.
The module uses a 32‑bit Mini PCI, Type IIIA interface.
