WUBR-101 is an 802.11g WLAN USB Dongle with a data transmission rate of up to 54Mbps. It incorporates an external antenna to enhance coverage distance and performance.
The SparkLAN WUBR-101 is a thumb‑sized USB 2.0 WLAN interface supporting IEEE 802.11b/g with an external 0.5 dBi antenna to boost range and performance up to 54 Mbps. It offers 64/128‑bit WEP, WPA, WPA2 and 802.1x security, making it suitable for road‑warrior use in airports, cafés, and other public spaces.

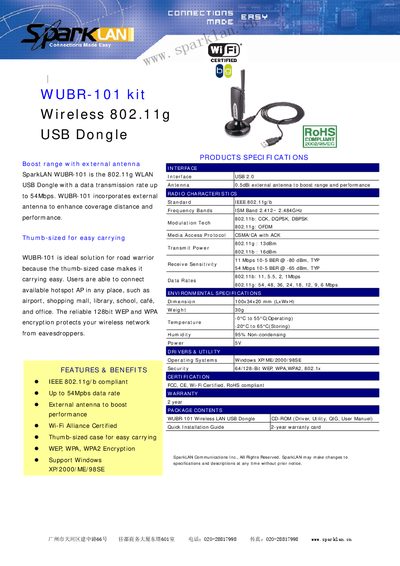

This manual includes product specifications, features and benefits, certification information, warranty details, and a quick installation guide. It also lists supported operating systems, environmental limits, and physical dimensions to help users set up and operate the dongle safely.
| Maximum data rate | 54 Mbps |
|---|---|
| Frequency band | 2.412 GHz – 2.484 GHz ISM band |
| Transmit power | 802.11g: 13 dBm, 802.11b: 16 dBm |
| Supported data rates | 802.11b: 11, 5.5, 2, 1 Mbps; 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps |
| Dimensions | 100 × 34 × 20 mm (L × W × H) |
| Weight | 30 g |
| Operating temperature | -20 °C to 65 °C |
| Power supply | 5 V |
| Supported operating systems | Windows XP/ME/2000/98SE |
The WUBR-101 can transmit up to 54 Mbps.
It supports Windows XP, ME, 2000, and 98SE.
It offers 64/128‑bit WEP, WPA, WPA2, and 802.1x encryption.
