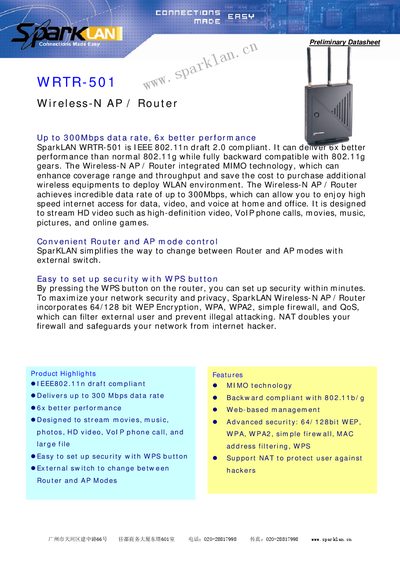

The SparkLAN WRTR-501 is a wireless N AP/router that is compliant with IEEE 802.11n draft 2.0 standard. It offers 6x better performance than normal 802.11g networks while being fully backward compatible with 802.11g devices. The product features MIMO technology, which enhances coverage range and throughput and saves the cost of purchasing additional wireless equipment for deploying a WLAN environment. With a data transmission rate of up to 300Mbps, this product allows for high-speed internet access for data, video, and voice at home and office. It is designed for streaming HD video, VoIP phone calls, movies, music, pictures, and online games. Users can conveniently switch between router and AP modes with an external switch. Security can be easily set up by pressing the WPS button on the router. The SparkLAN WRTR-501 incorporates 64/128 bit WEP Encryption, WPA, WPA2, a simple firewall, and QoS to maximize network security and privacy, filter external users, and prevent illegal attacks. NAT technology provides double firewall protection to safeguard the network from internet hackers.
The SparkLAN WRTR-501 is a Wireless‑N AP/Router that complies with IEEE 802.11n draft 2.0 and offers up to 300 Mbps data rate. It supports both router and AP modes, which can be switched via an external switch, and includes a WPS button for quick security setup.
Key hardware features include a 1×10/100 Mbps WAN port, 4×10/100 Mbps LAN ports, three detachable 2 dBi antennas, and support for multiple security protocols such as 64/128‑bit WEP, WPA, and WPA2. The device operates in the 2.4 GHz ISM band and meets typical temperature and humidity ranges for indoor use.
| Maximum Data Rate | Up to 300 Mbps |
|---|---|
| Wireless Standard | IEEE 802.11n draft 2.0 (backward compatible with 802.11b/g) |
| Frequency Band | 2.400 – 2.484 GHz (ISM band) |
| Antenna | Three external 2 dBi detachable antennas |
| LAN Ports | 4 × 10/100 Mbps |
| WAN Port | 1 × 10/100 Mbps |
| Dimensions | 135 × 120 × 23 mm |
| Weight | 72 g |
It supports IEEE 802.11n draft 2.0 and is backward compatible with 802.11b/g.
The device can be switched from router mode to AP mode using the external switch.
It includes three external 2 dBi detachable antennas.
