The WCFM-100 Wireless 802.11g Compact Flash (CF) Adapter is a RoHS compliant and Pb-free wireless CF card adapter. It allows your PDA devices to carry wireless network anywhere you go. With the WCFM-100 CF card adapter-enabled in your Pocket PC (PPC), you can synchronize your PC's Outlook folders wirelessly. It is ideal for travelers and business users who frequently check schedules, contact lists, or surf the web for instant information. The CF card adapter is compact and easy to integrate into handheld devices. It offers advanced security features such as 64 & 128 bit WEP, WPA with TKIP, WPA-PSK with TKIP, and 802.1X.
The SparkLAN WCFM-100 is a compact wireless CF card adapter that enables Pocket PC and other handheld devices to connect to Wi‑Fi networks at up to 54 Mbps. It supports IEEE 802.11b/g, offers advanced security (WEP, WPA‑TKIP, WPA‑PSK, 802.1X) and is RoHS‑compliant and lead‑free.

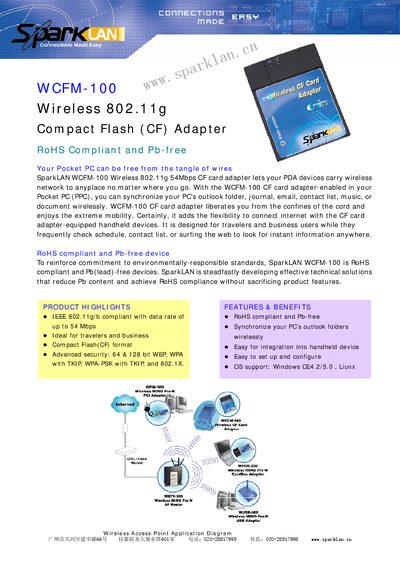

This manual covers hardware and software features, installation steps, system requirements, technical specifications, certifications, warranty information, and a list of package contents. It also points to related SparkLAN products for further expansion.
| Interface | Compact Flash |
|---|---|
| Frequency Band | 2.412 ~ 2.4835 GHz (ISM‑Band) |
| Receive Power Consumption | 270 mA |
| Idle Power Consumption | 1.2 mA |
| Output Power (802.11g) | 12.5 dBm ±1 dBm |
| Dimensions | 56 × 42 × 5 mm (L × W × H) |
| Weight | 10 g |
| Operating Temperature | 0 °C ~ 60 °C |
| Storage Temperature | -40 °C ~ 85 °C |
| Maximum Humidity | 95 % non‑condensing |
| OS Support | Windows CE 4.2/5.0, Linux |
| Security | 64/128‑bit WEP, WPA‑TKIP, WPA‑PSK, 802.1X |
| Certifications | FCC, CE |
| Warranty | 1 Year |
The adapter works with Windows CE 4.2/5.0 and Linux.
