The AD-600Z 802.11g USB Adapter is a wireless networking adapter produced by SparkLAN. It supports 802.11g and 802.11b protocols, operates in the 2.4GHz frequency band, and has a maximum transmission speed of 54Mbps. The adapter comes with a 1.2m USB cable and a magnetic mount for easy connection to a computer.
The SparkLAN AD-600Z is a 802.11g USB wireless adapter that includes a 1.2 m USB cable, magnetic mounting kit, and a detachable 2 dBi RSMA antenna for improved signal strength and flexibility. It operates in the 2.4 GHz band and supports security protocols such as WEP, WPA‑PSK, WPA2, TKIP, and AES.

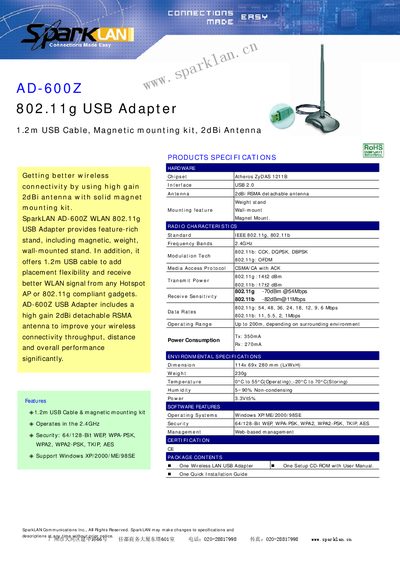

The manual outlines hardware specifications, including the Atheros ZyDAS 1211B chipset, USB 2.0 interface, and power consumption of 350 mA (Tx) and 270 mA (Rx). Environmental limits, dimensions (114 × 69 × 280 mm), and operating temperature ranges are also provided, along with supported Windows operating systems and web‑based management features.
| Chipset | Atheros ZyDAS 1211B |
|---|---|
| Interface | USB 2.0 |
| Antenna | 2 dBi RSMA detachable |
| Frequency Band | 2.4 GHz |
| Data Rates (802.11g) | 54, 48, 36, 24, 18, 12, 9, 6 Mbps |
| Transmit Power (802.11g) | 14‑42 dBm |
| Receive Sensitivity (802.11g) | -70 dBm @54 Mbps |
| Operating Range | Up to 200 m |
| Power Consumption (Tx) | 350 mA |
| Dimension | 114 × 69 × 280 mm (L×W×H) |
| Weight | 230 g |
| Operating Temperature | 0 °C to 55 °C (operating) |
| Supported OS | Windows XP/ME/2000/98SE |
| Security Protocols | 64/128‑Bit WEP, WPA‑PSK, WPA2, WPA2‑PSK, TKIP, AES |
The adapter supports Windows XP, Windows ME, Windows 2000, and Windows 98SE.
The device can operate up to 200 meters, depending on the surrounding environment.
It supports 64/128‑bit WEP, WPA‑PSK, WPA2, WPA2‑PSK, TKIP, and AES.
It uses a detachable 2 dBi RSMA antenna.
