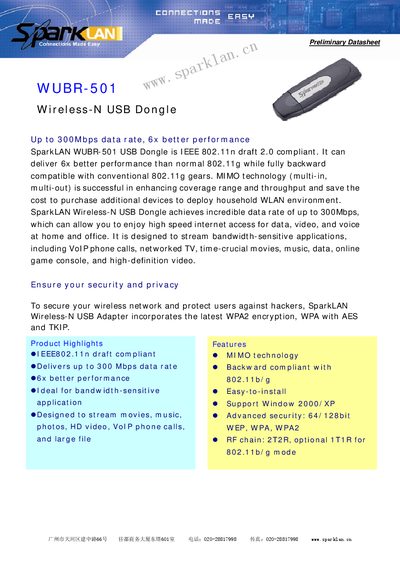

SparkLAN WUBR-501 USB Dongle is a wireless network card that complies with the IEEE 802.11n draft 2.0 standard. This network card can provide 6 times the performance of a standard 802.11g network card, while still being fully backward compatible with conventional 802.11g devices. MIMO technology (multiple input and output) has successfully enhanced coverage range and throughput, saving the cost of purchasing additional devices to deploy a home WLAN environment. SparkLAN Wireless-N USB Dongle achieves an incredible data rate of up to 300Mbps, allowing you to enjoy high speed internet access at home and office for data, video, and voice. It is designed to stream bandwidth-sensitive applications, including VoIP phone calls, networked TV, time-critical movies, music, data, online game console, and high-definition video. To secure your wireless network and protect users from hackers, SparkLAN Wireless-N USB Adapter incorporates the latest WPA2 encryption, WPA with AES and TKIP.
The SparkLAN WUBR-501 is a Wireless‑N USB adapter that complies with IEEE 802.11n draft 2.0. It provides up to 300 Mbps data rate, MIMO technology, and backward compatibility with 802.11b/g networks, making it suitable for high‑speed internet, video streaming, VoIP, and online gaming.
Key specifications include a built‑in smart antenna, USB 2.0 interface, 2T2R (optional 1T1R) RF chain, and support for WPA2, WPA, WEP, TKIP and AES encryption. The device operates in the 2.400‑2.484 GHz ISM band, works with Windows 2000/XP/Vista, and meets environmental limits of 0 °C‑55 °C operating temperature and 90 % non‑condensing humidity.
| Maximum data rate | 300 Mbps |
|---|---|
| Frequency band | 2.400–2.484 GHz |
| Interface | USB 2.0 |
| Chipset | Ralink RT2870 / RT2820 |
| Antenna | Built‑in Smart |
| Dimensions | 100 × 34 × 20 mm |
| Weight | 32 g |
| Operating temperature | 0 °C to 55 °C |
| Storage temperature | -20 °C to 80 °C |
| Humidity | 90 % non‑condensing |
| Supported OS | Windows 2000/XP/Vista |
| RF chain | 2T2R, optional 1T1R |
It can deliver up to 300 Mbps.
The dongle works with Windows 2000, Windows XP and Windows Vista.
It operates in the ISM band from 2.400 GHz to 2.484 GHz.
