SparkLAN WRTR-300 wireless router supports 802.11g wireless standard, uses MIMO (Multiple-Input Multiple-Output) technology, which can simultaneously transmit and receive multiple wireless signals, and reduce the number of dead spots, coverage is 8 times larger than conventional wireless routers, and is 100% backward compatible with 802.11b/g standards.
The WRTR-300 wireless router uses MIMO (Multiple‑Input Multiple‑Output) technology with multiple antennas to provide up to eight times greater coverage than conventional gear, while remaining 100% backward compatible with 802.11b/g devices. It includes a 4‑port 10/100Base‑T Ethernet switch and a WAN port for broadband sharing, and offers advanced security such as 64/128‑bit WEP, WPA with AES/TKIP, Layer 2 isolation, VPN pass‑through, and MAC address filtering.

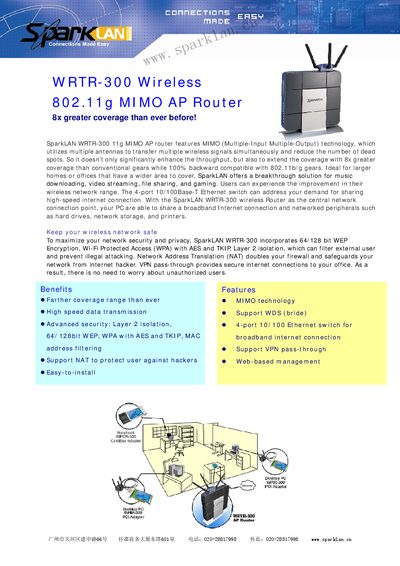

The manual also lists the router’s technical specifications, including supported IEEE 802.11b/g standards, data rates up to 54 Mbps, power consumption, operating temperature and humidity ranges, and compliance with FCC and CE regulations. Installation is supported by a web‑based management interface and quick‑start guidance.
| WAN Port | 1 × 10/100Base‑T |
|---|---|
| LAN Ports | 4 × 10/100Base‑T Ethernet |
| Wireless Standards | IEEE 802.11b/g |
| Frequency Band | 2.412 ~ 2.4835 GHz (ISM‑Band) |
| Data Rates (802.11g) | 54, 48, 36, 24, 18, 12, 9, 6 Mbps |
| Security Features | 64/128‑bit WEP, WPA‑AES/TKIP, WPA‑RADIUS, Layer 2 isolation, VPN pass‑through, MAC filtering |
| Power Input | AC 110‑240 V |
| Power Output | DC 12 V, 0.5 A |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
It provides 64/128‑bit WEP, WPA with AES and TKIP, WPA‑RADIUS, Layer 2 isolation, VPN pass‑through, and MAC address filtering.
The router includes one WAN port and four 10/100Base‑T LAN ports.
It supports IEEE 802.11b and 802.11g standards.
It requires an AC input of 110‑240 V and supplies DC 12 V at 0.5 A.
