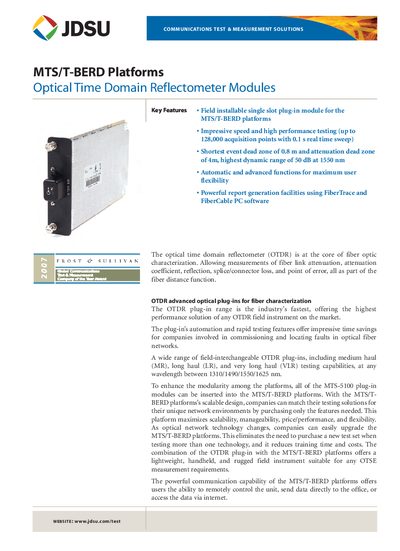

The optical time domain reflectometer (OTDR) is at the core of fiber optic characterization. It allows for measurements of fiber link attenuation, attenuation coefficient, reflection, splice/connector loss, and point of error as part of the fiber distance function. The OTDR plug-in range is the fastest in the industry, offering the highest performance solution for OTDR field instruments. Its automation and rapid testing features save significant time for companies involved in commissioning and locating faults in optical fiber networks. The range includes field-interchangeable OTDR plug-ins with medium haul (MR), long haul (LR), and very long haul (VLR) testing capabilities at various wavelengths. The plug-ins can be inserted into the MTS/T-BERD platforms to enhance modularity. The scalable design of the MTS/T-BERD platforms allows companies to customize their testing solutions for their unique network environments by purchasing only the necessary features. This maximizes scalability, manageability, price/performance, and flexibility. The platforms can be easily upgraded as optical network technology changes, eliminating the need for purchasing new test sets and reducing training time and costs. The combination of the OTDR plug-in with the MTS/T-BERD platform enables efficient fiber characterization testing.
The MTS/T-BERD Platforms are modular, field‑installable OTDR solutions offering high‑speed acquisition (up to 128,000 points) and a dynamic range of up to 50 dB at 1550 nm. They support a variety of plug‑in modules for short, medium, long, very long, and ultra‑long range testing across multiple wavelengths (1310/1550/1625 nm, etc.) and include built‑in talk set communication and VFL inspection options for comprehensive fiber link analysis.
The datasheet provides detailed technical specifications such as pulse width ranges (3 ns to 200 ns), distance measurement accuracy (+‑1 m), and software integration with FiberTrace and FiberCable PC for report generation. Ordering information lists specific OTDR module part numbers for single‑mode and multimode configurations, and contact details for regional sales support.
| Number of data points | Up to 128 000 |
|---|---|
| Pulse width | 3 ns to 200 ns |
| Central wavelength options | 1310/1550 ± 20 nm |
The OTDR can acquire up to 128 000 data points.
Reports can be generated using FiberTrace and FiberCable PC software.
Pulse widths from 3 ns to 200 ns are supported.
