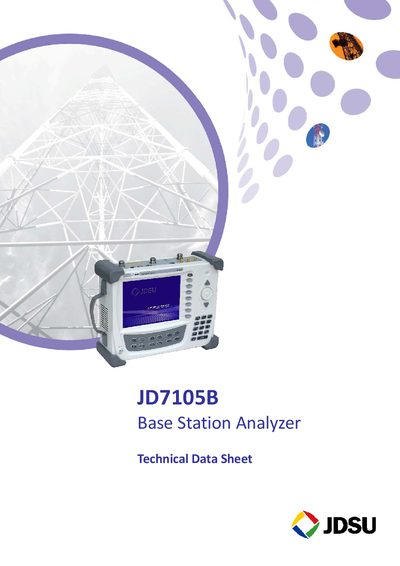

This document is the technical datasheet for JD7105B base station analyzer. It provides detailed information about the product's parameters and characteristics
The JD7105B Base Station Analyzer is a test and measurement instrument for wireless base‑station testing. The data sheet describes its spectrum analysis, power measurement, cable/antenna analysis, GPS, interference and channel scanning capabilities, along with optional accessories such as Yaggi antennas and adapters.
Key specifications include a frequency range of 100 kHz to 7.2 GHz, various resolution bandwidths, display ranges for both spectrum and power measurements, and detailed options for pre‑amplifier settings, markers, and sweep modes. Optional modules and accessories are listed with part numbers and frequency coverage.
| Frequency range (Spectrum Analyzer) | 100 kHz to 7.2 GHz |
|---|---|
| Power meter display range | -100 dBm to +100 dBm |
| Dynamic range (Power Meter) | -120 dBm to +30 dBm |
The Spectrum Analyzer covers 100 kHz to 7.2 GHz.
A warm‑up time of 30 minutes and two hours of operation is required.
The power meter display range is –100 dBm to +100 dBm.
