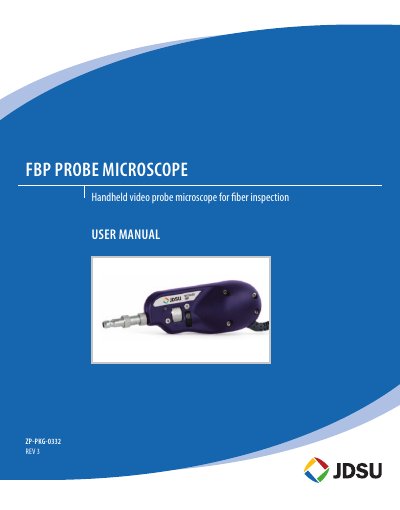

JDSU FBP Probe Microscope User Manual

ZP-PKG-0332 REV 3 FBP ProBe MicroscoPe is a handheld video probe microscope designed for fiber inspection. It features portability and high resolution.

Brand: JDSU
Category: Other
Document type: User Manual
Language: English
Pages: 24
File format: PDF
File size: 2.7 MB
Published: 12 April, 2012
Updated: 28 September, 2023
MD5 checksum: 055C5F2D9057E643254567F9096C93E5
PDF: JDSU FBP Probe Microscope User Manual PDF

About this manual

The JDSU FBP Probe Microscope is a handheld video probe designed for fiber inspection and cleaning. It enables visual inspection of connector end faces, helping to prevent contamination‑related network problems and optimize signal performance.

The manual covers fiber inspection solutions, connector terminology, detailed controls (focus, magnification, QuickCapture), probe specifications, and inspection tips with various tips and adapters. Appendices describe related video probe solutions and the CleanBlast fiber‑cleaning system.

What's inside

JDSU Fiber Inspection Solutions
Fiber Optic Connectors
FBP Probe Microscope
FBPT Inspection Tips & Adapters
Appendix A – JDSU Fiber Inspection Video Probe Solutions
Appendix B – JDSU Advanced Fiber Cleaning Systems

Specifications

USB Interface	USB 1.1 Analog-to-Digital Converter
Video Output	Video Output Module
Magnification Options	200/400X (single or dual‑magnification)

Frequently asked questions

What is the purpose of the FBP Probe Microscope?

It is a handheld video probe microscope used to quickly and easily inspect fiber connector end faces for contamination.

What cleaning system is recommended for use with the probe?

JDSU recommends the CleanBlast non‑contact fiber cleaning system, which can be used with an optional video probe microscope.

Download PDF (2.7 MB)
