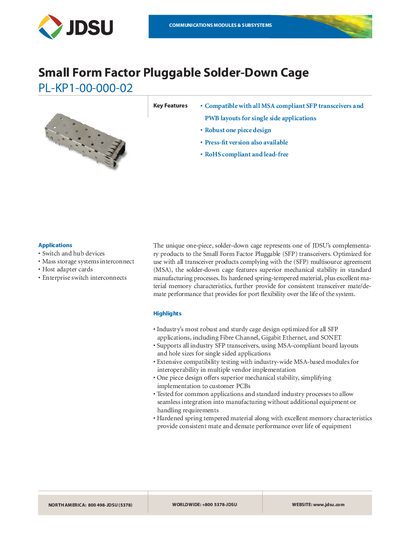

This product is an SFP cage produced by JDSU. It has excellent durability and sturdiness and is suitable for various SFP applications, including Fibre Channel, Gigabit Ethernet, and SONET.
The PL‑KP1‑00‑000‑02 is a one‑piece, press‑fit compatible solder‑down cage designed for Small Form Factor Pluggable (SFP) transceivers that meet the Multisource Agreement (MSA). It offers robust mechanical stability, hardened spring‑tempered alloy construction, and 360° EMI finger contacts, making it suitable for switch, hub, mass‑storage and host‑adapter applications.
The cage is supplied in cardboard boxes containing 350 units (10 layers of 35 cages each). It is RoHS‑compliant, FCC Class B certified, and fabricated from C77000 sheet metal. Recommended PCB layouts and mechanical dimensions are provided for single‑sided boards with a minimum thickness of 0.062 in.
| Compatibility | All MSA‑compliant SFP transceivers |
|---|---|
| RoHS compliance | Yes, lead‑free |
| FCC Class | Class B |
| Minimum PCB thickness | 0.062 in |
| Material | C77000 sheet metal |
| Package quantity | 350 cages per box (10 layers of 35 cages) |
It can be used with any transceiver that complies with the SFP Multisource Agreement (MSA).
Yes, the cage is RoHS compliant and lead‑free.
Each box contains 350 cages, arranged in 10 layers of 35 cages each.
The recommended minimum printed wiring board thickness is 0.062 inches.
