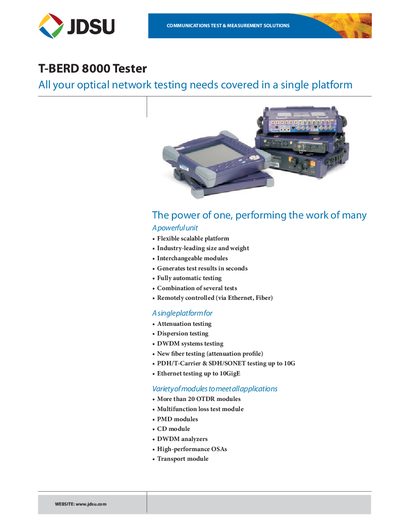

T-BERD 8000 Tester is a powerful optical network tester that covers all your optical network testing needs in a single platform. The instrument features a flexible scalable platform, industry-leading size and weight, interchangeable modules, generates test results in seconds, fully automatic testing, combination of several tests, and remote control via Ethernet, Fiber. The instrument also supports a variety of modules to meet all applications.
The T-BERD 8000 Tester is a flexible, scalable platform for optical network testing, offering interchangeable modules for attenuation, dispersion, DWDM, PDH/T‑Carrier, SDH/SONET, and Ethernet up to 10 GigE. It supports fully automatic testing, remote control via Ethernet or fiber, and provides test results in seconds.
The device includes a 10.4‑inch TFT color display (800 × 600), internal memory, optional hard‑disk storage, multiple I/O ports (RS‑232C, USB, VGA, RJ45 Ethernet, optional RJ‑11), and a power system that accepts 19‑25 V DC or 100‑240 V AC with a 19 V DC/3.1 A output. It operates from –20 °C to +50 °C, weighs up to 5.4 kg with battery pack, and meets CE EMI/ESD compliance.
| Display | TFT color, 10.4 inches, LCD 800 × 600 |
|---|---|
| Internal memory | 16 MB |
| Optional hard‑disk | minimum 20 GB |
| I/O interfaces | RS‑232C, 2 × USB, VGA, RJ45 Ethernet, optional RJ‑11 modem |
| Power input (DC) | 19 V‑25 V |
| Physical size | 320 × 265 × 55 mm (12.6 × 10.4 × 2.1 in) |
| Weight (mainframe only) | 2.9 kg (6.39 lb) |
| Weight (with battery pack) | 5.4 kg (11.9 lb) |
| DWDM module optical channels | 512 channels |
It uses a 10.4‑inch TFT color display with an LCD resolution of 800 × 600 pixels.
The DWDM module supports 512 optical channels.
