This product is a RoHS-compliant SFP connector that is compatible with all MSA-compliant SFP transceivers and PCB layouts for single- and double-sided applications. It provides enhanced EMI performance at data rates up to and above 4Gbps and is RoHS-compliant and lead-free.

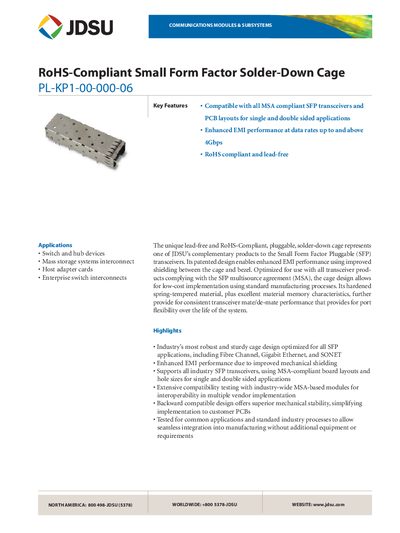

The PL‑KP1‑00‑000‑06 is a lead‑free, RoHS‑compliant solder‑down cage designed for all MSA‑compliant SFP transceivers. It offers superior EMI performance at 4 Gbps and fits standard PCB layouts with a minimum board thickness of 0.062 in.
The cage is packaged in cardboard boxes containing 350 units each, made from Alloy 770 sheet metal with a tin‑plated BeCu EMI collar. It complies with the EU Directive 2002/95/EC for hazardous substances and is supported by JDSU worldwide contact information.
| EMI performance | Superior at 4 Gbps |
|---|---|
| RoHS compliance | Lead‑free, RoHS‑compliant |
| Board layout compatibility | Supports MSA‑compliant board layout and hole sizes |
| Minimum PCB thickness | 0.062 inches |
| Material | Alloy 770 sheet metal with tin‑plated BeCu EMI collar |
| Units per box | 350 cages |
It is compatible with all MSA‑compliant SFP transceivers.
Yes, it complies with the EU RoHS Directive 2002/95/EC.
The minimum PCB thickness is 0.062 inches.
Each cardboard box contains 350 cages, arranged in 10 layers of 35 cages each.
