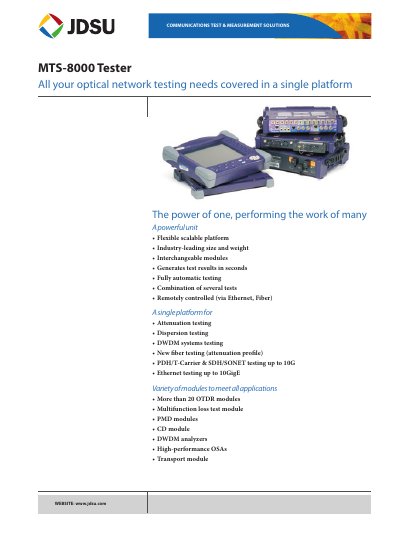

MTS-8000 Tester is an optical network tester that covers all your optical network testing needs, with a flexible scalable platform, industry-leading size and weight, interchangeable modules, test results generated in seconds, fully automatic testing, combination of multiple tests, remote control (via Ethernet, Fiber).
The MTS-8000 Tester is a flexible, scalable platform for a wide range of optical network tests, including attenuation, dispersion, DWDM, FTTx, PDH/T‑Carrier, SDH/SONET, and Ethernet up to 10 GigE. It offers interchangeable OTDR, loss‑test, PMD, CD, and DWDM modules, all controllable via Ethernet or fiber.
Key hardware features include a 10.4‑inch TFT color LCD (800 × 600), internal 16 MB memory (optional 20 GB hard disk), multiple I/O ports (RS‑232C, 2 × USB, VGA, RJ45 Ethernet, optional RJ11), and a battery‑backed power supply with AC/DC adapter. The unit operates from –20 °C to +50 °C (no‑option) and weighs 2.9 kg (mainframe only) or up to 5.4 kg with battery pack.
| Display | 10.4‑inch TFT color LCD, 800 × 600 |
|---|---|
| Internal memory | 16 MB |
| Optional hard disk | minimum 20 GB |
| Physical dimensions (mainframe only) | 320 × 265 × 55 mm (12.6 × 10.4 × 2.1 in) |
| Weight (mainframe only) | 2.9 kg (6.39 lb) |
| Operating temperature (no options) | -20 °C to +50 °C |
It has a 10.4‑inch TFT color LCD with an 800 × 600 pixel resolution.
The DWDM module supports 512 optical channels.
The mainframe alone weighs 2.9 kg (6.39 lb).
